This affordably priced camera delivers great image quality in 4 MP with 10x optical zoom. It offers continuous 360° pan and autofocus ensures detailed, sharp images - every time. Compatible with all Axis PTZ mounts, it can be mounted both in- and outdoors. Built on ARTPEC-8, it includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. And AXIS Object Analytics can detect and classify humans, vehicles, and types of vehicles. Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
- 4 MP and 10x optical zoom
- Continuous 360° pan
- Support for analytics with deep learning
- Compact design
- PoE or 24 V with audio and I/O connectivity
| Brand | |
|---|---|
| Brand | Axis Communications |
| Memory / RAM | |
|---|---|
| Internal Memory | 1 GB |
| Storage | |
|---|---|
| Storage Type | Memory Card |
| Screen / Display | |
|---|---|
| Color Supported | Color |
| Power & Battery | |
|---|---|
| Input Voltage | 28 V DC |
| Maximum Power Consumption | 12.95 W |
| Power Source Type | PoE |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Protocols | ONVIF |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Field of View | Horizontal field of view: 59.1°-6.5° , Vertical field of view: 35°-3.67° |
| Optical Zoom | 10x |
| HD Recording | Yes |
| Lens Included | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Wide Dynamic Range Detail | 120 dB |
| Effective Camera Resolution | 4 Megapixel |
| Maximum Video Resolution | 2688 x 1512 |
| Image Sensor Type | RGB CMOS |
| Minimum Focal Length | 4.70 mm |
| Maximum Focal Length | 47 mm |
| Minimum Aperture | f/3 |
| Maximum Aperture | f/1.6 |
| Shortest Shutter Speed | 1/27000 Second |
| Longest Shutter Speed | 0.2 Second |
| Lens Type | Varifocal |
| Maximum Frame Rate | 60 fps |
| Image Sensor Size | 1/3" |
| Camera Iris | Auto |
| Audio | |
|---|---|
| Audio Support | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Dome |
| General Features | |
|---|---|
| AI-powered | Yes |
| Remote Management | Yes |
| Languages Support | Vietnamese |
| Indoor/Outdoor | Indoor/Outdoor |
| Video Formats | H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Manufacturer | Axis Communications |
| Compliance & Certification | |
|---|---|
| Maximum Storage Humidity (Non | 95% |
| Maximum Operating Humidity (C | 100% |
| Minimum Storage Humidity (Non | 5% |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Ingress Protection Rating | IP66 |
| Impact Protection Rating | IK09 |
| Miscellaneous | |
|---|---|
| Product Name | M5526-E PTZ Camera Indoor and Outdoor 4 MP With 10x Zoom and Focus Recall |

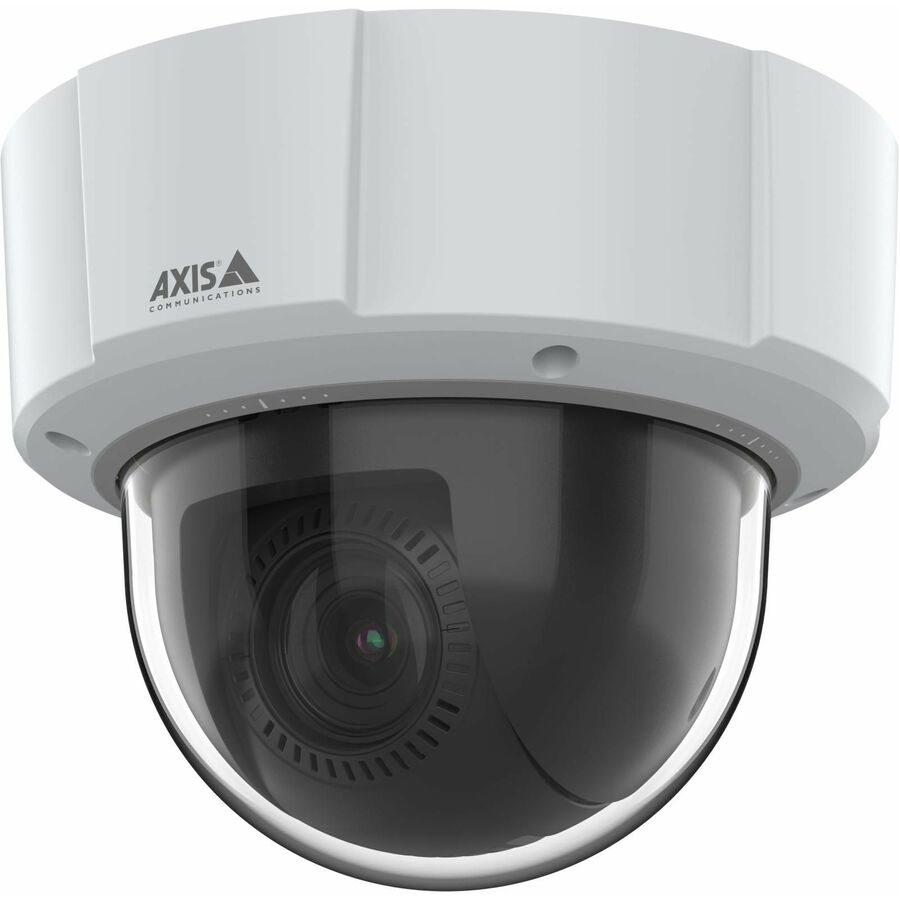

AXIS AXIS M5526-E 4 Megapixel Indoor/Outdoor Network Camera - Color - Dome - White - H.264, H.265, Motion JPEG, Zipstream, H.264B (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) Main Profile - 2688 x 1512 - 4.70 mm- 47 mm Varifocal Lens - 10x Optical - 60 fps - RGB CMOS - Fast Ethernet - IK09 - IP66 - Audio Support - Day/Night, Ingress Protection, Motion Detection, Vehicle Detection, Human Detection, HTTPS Encryption, Password Prote
