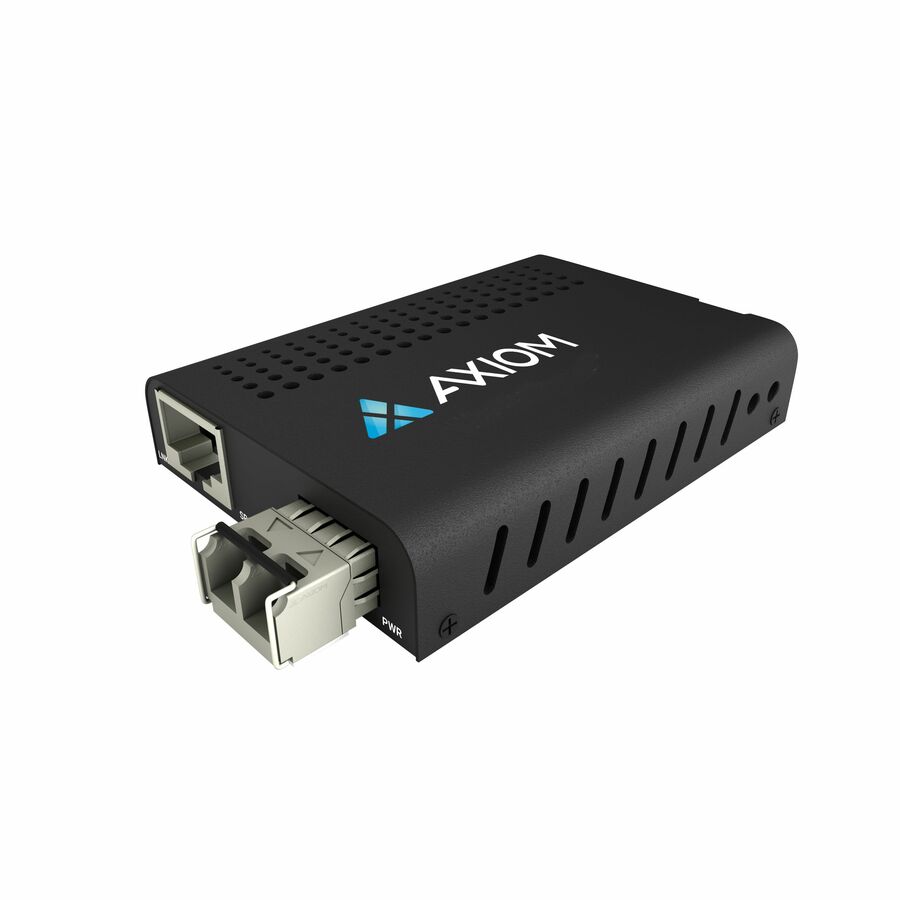

The Axiom Mini Mini 10Gbs Ethernet Media Converter series, is a 10Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10GBASE-TX ports and 10GBase-FX fiber optic ports. Available with an open SFP port or pre-configured with an optical transceiver to fit your environment, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.
- Unit and Port LEDs allow for quick status information
- Jumbo Frame Support
- Transparent transport and very low delay
- Support for ITUT prescribed DWDM/CWDM wavelength
- Loopback test function support
- Hot-Swappable into your existing network
- Support 1U Rack (12 channel) and standalone use
- Compact package size
- Easy installation
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 10GBase-T technology get up to 10Gbps data transfer rate over twisted pair cable
- Compact Transceiver/Media Converter can be conveniently placed anywhere to ensure maximum space-efficiency
| Brand | |
|---|---|
| Brand | Axiom Memory Solutions |
| Power & Battery | |
|---|---|
| Power Source | DC |
| Power Consumption | 5 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-SR |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Standalone |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 10 Gbit/s |
| Maximum Distance Supported | 0.40 km |
| Manufacturer | Axiom Memory Solutions |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Number of LC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
