Features
The Axiom Mini 10/100Base-TX to 100Base-FX Media Converter Series is a Fast Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100Base-TX ports and 100Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.
- Unit and Port LEDs allow for quick status information
- Auto-Negotiation
- Full-Duplex or Half-Duplex Operation Modes
- Auto-MDI/MDIX
- Automatic Link Restoration
- Connect to legacy network equipment
- Eliminate Collision Domains
- 10/100Base-TX UTP to 100Base-FX fiber media convertion
- Support IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX standards
- Available with Open SFP Port or optional built in LC/SC/ST Connections
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support
- Compact package size
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 100Base-LX technology get up to 100Mbps data transfer rate over twisted pair cable
| Brand | |
|---|---|
| Brand | Axiom Memory Solutions |
| Power & Battery | |
|---|---|
| Power Source | DC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100Base-TX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| General Features | |
|---|---|
| Maximum Distance Supported | 10 km |
| Manufacturer | Axiom Memory Solutions |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Number of ST Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Miscellaneous | |
|---|---|
| Product Name | Transceiver/Media Converter |

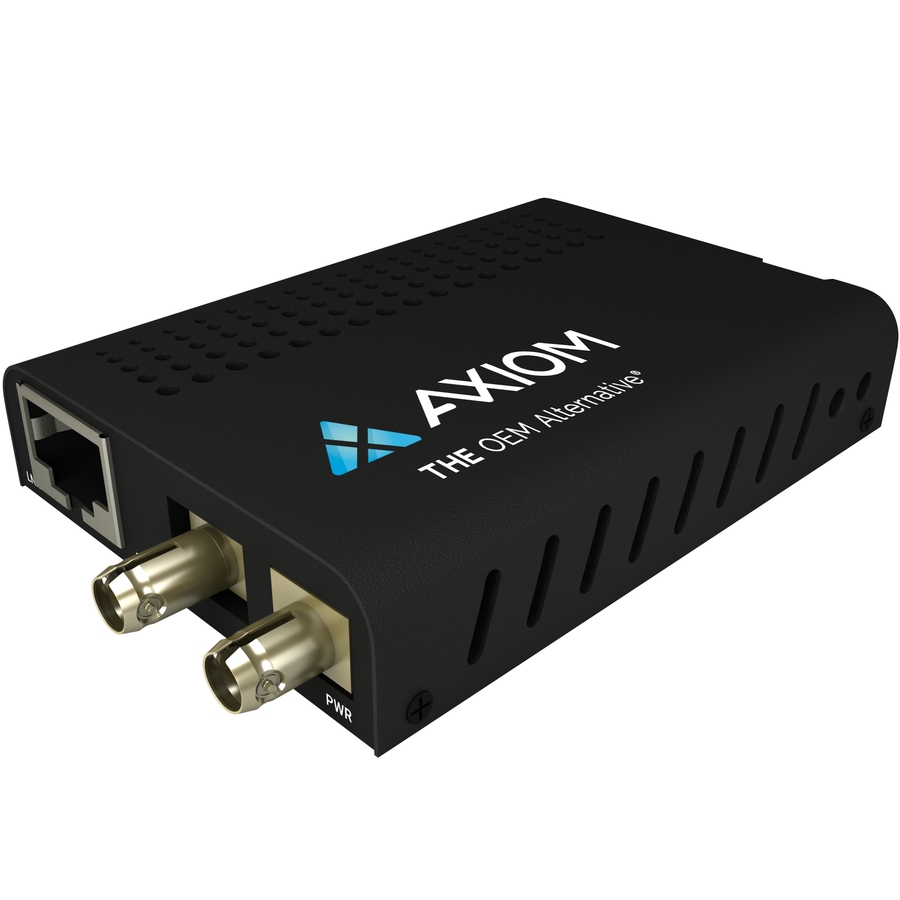

Axiom Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Single-mode - 1310 nm Fiber - Fast Ethernet - 100Base-LX, 10/100Base-TX - 10 km - DC
