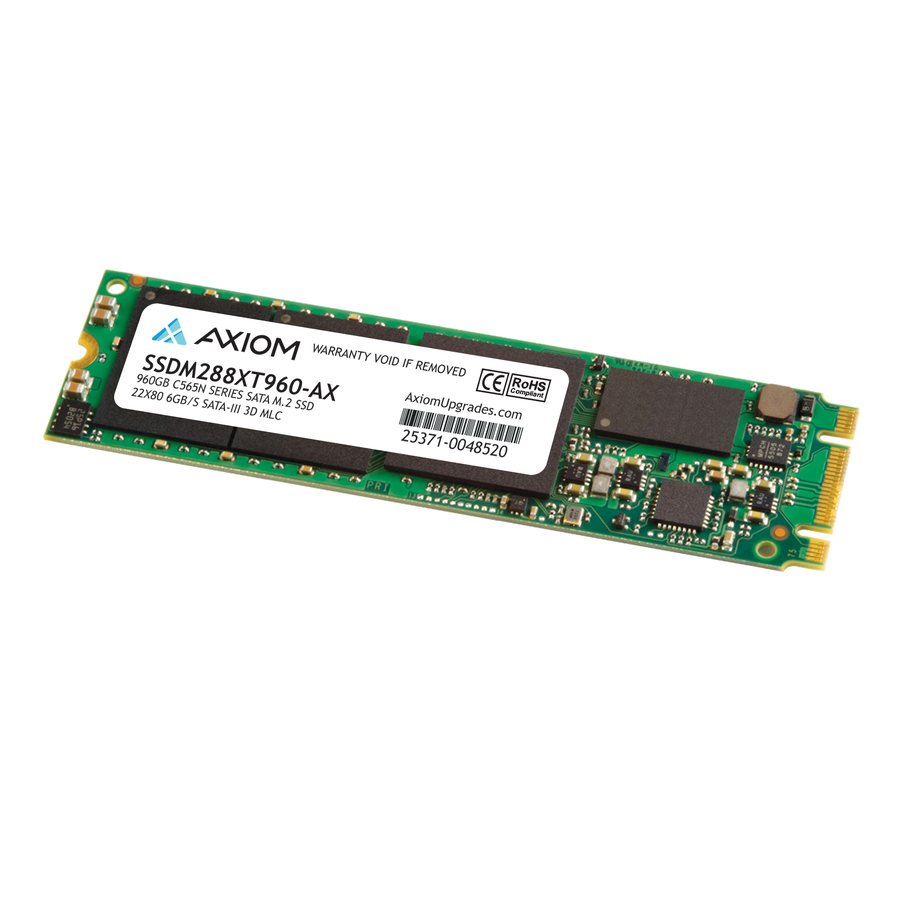

The Axiom C565n Series M.2 SSD combines performance and reliability with low power operation to make the ideal mobile drive. The high read and write performance will satisfy the most demanding power user. While the low power mode extends battery life for the road warrior.
Providing an industry-leading bandwidth of more than 565MB/sec transfers, the Axiom C565n Series M.2 SSD can approach the limits of the SATA 6Gb/s interface on large transfers. Performance reaches enterprise class standards with up to 86,000 IOPS.
A robust LDPC algorithm and StaticDataRefresh technology protect the data. Efficient bad block management and reduced write amplification further bolster endurance. Drive health is monitored using an SSD-specific set of S.M.A.R.T. attributes. The combination of these techniques provides data protection unrivaled in the storage industry.
- TRIM command support (OS dependent)
- Intelligent garbage collection routines for advanced free space management
- StaticDataRefresh technology ensures data integrity
- Global wear leveling evens program/erase counts to extend drive lifespan
- SLC caching accelerates burst performance
- DTT mode enhances sustained write performance
- Industry-standard 512 byte sector support
- ATA/ATAPI-8-ACS3 command set compliant
- Silicon Motion SM2258 controller
- SATA 3.1 Compliant SATA 6Gb/s - backwards compatible with SATA 3Gb/s and 1.5Gb/s
| Brand | |
|---|---|
| Brand | Axiom Memory Solutions |
| Storage | |
|---|---|
| Storage Capacity | 960 GB |
| Drive Type | Internal |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Maximum Read Transfer Rate | 565 MB/s |
| Maximum Write Transfer Rate | 525 MB/s |
| Power & Battery | |
|---|---|
| Operating Power Consumption | 2.10 W |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | No |
| Size / Dimensions | |
|---|---|
| Form Factor | M.2 2280 |
| General Features | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
