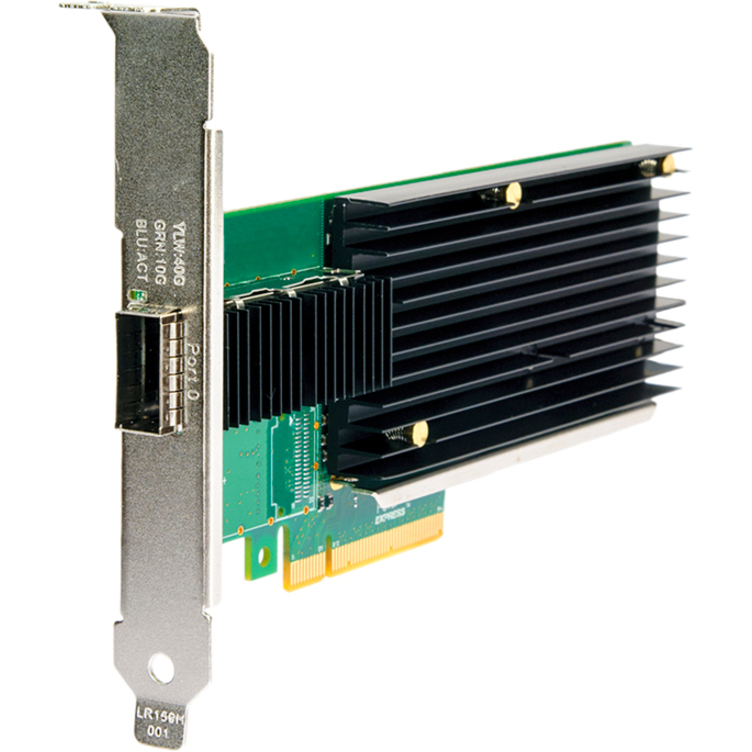

Axiom 40Gbs Dual Port QSFP+ PCIe 3.0 x8 NIC Card for Dell - 540-BBRN

$ 867.49 $ 867.49
$ 867.49

$ 867.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Chipset Manufacturer
  • Chipset Model
  • Network Technology
  • Expansion Slot Type
  • Total Number of Ports
  • Host Interface
  • Form Factor
  • Maximum Data Transfer Rate
  • Media Type Supported
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Device Supported
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

Features

The Axiom QSFP+ PCIe 3.0 x8 40Gbs Fiber Network Adapter is designed for Servers and high-end appliances. They offer simple integration into any PCI Express X8 to 40 Gigabit Networks. Based on Intel XL710AM Ethernet controller with two fully integrated Gigabit Ethernet Media Access Control (MAC) and XLPPI Interfaces, the Axiom QSFP+ NIC cards are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

Key Features:

  • Network Virtualization offloads for VXLAN and NVGRE
  • Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI,FCoE)
  • Virtual Bridging Support - VEPA/802.1Qbg,BPE/802.1Qbh
  • Physical Functions - Up to 8 per port
  • Support for 128 Virtual Device Queues (VMDq) per port
  • Hardware Queue Pairs - Up to 1.5K (non-RDMA); up to 256K (RDMA)
  • Virtualization - Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines
  • Includes Full Height and Half Height Mounting Brackets
  • 40Gigabit Ethernet card has an impressive performance that enables an affordable solution for trouble-free networking, clustering, or storage
  • Enjoy superfast data transfer of up to 8000 MB/s with PCI Express 3.0 x8 card, between the network card and motherboards
  • This dual port 40gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
  • Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
  • With the 40GBase-X technology get up to 40Gbps data transfer rate over the supported network cable
Brand
Brand Axiom Memory Solutions
Networking & Connectivity
Network Technology 40GBase-X
Size / Dimensions
Form Factor Plug-in Card
General Features
Chipset Manufacturer Intel
Chipset Model XL710AM2
Maximum Data Transfer Rate 40 Gbit/s
Manufacturer Axiom Memory Solutions
Expansion Slots
Expansion Slot Type QSFP+
Misc Ports
Total Number of Ports 2
Host Interface PCI Express 3.0 x8
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
