Features

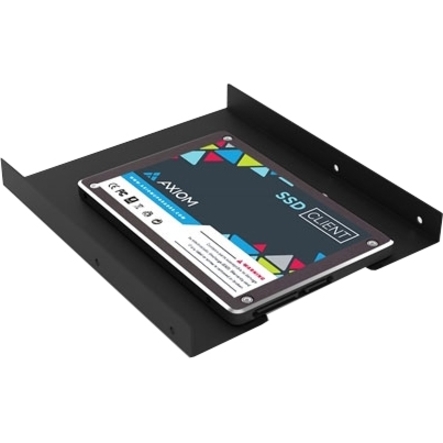

The Axiom C550n is a high-performance SATA 6Gb/s SSD ideally suited for cost-effective, small form factor and low power client and industrial storage solutions for PCs, Ultrabooks, Tablet PCs, and other embedded applications. Featuring the Silicon Motion SM2258 controller and quality 3D TLC NAND, these SSDs are loaded with enhancements to promote a high performing and reliable computing environment. TRIM, Wear Leveling, StaticDataRefresh, and LDPC ECC functions optimize data processing efficiency. S.M.A.R.T. and a built-in temperature sensor assist with monitoring drive health.
The 3D TLC SSD provides outstanding transfer speeds. Improved system startup, data access, application loading, and backup times are typically realized when upgrading systems from a traditional spinning disk hard drive to a 3D TLC SSD. SLC Cache is included and further enhances read/write and IOPS ratings. The 3D TLC SSD is an ultra-low-power storage solution with DevSleep support, providing improved notebook battery life and lower cooling costs in datacenters. 3D TLC SSDs are compatible with any operating system and work in both SATA and SAS environments.
Reduced Power Requirements
- No moving parts
- Super-low operating and standby power needs
- Power requirements notably reduced over a typical HD
Fast Performance
- Virtually zero spin up or seek times
- Zero rotational latency
- High sustained data transfer rate Reliable
- No volatile memory elements
- Improved resistance to shock & vibration
- Predictable and manageable failure modes reduce IT costs
Improved Operation
- Noise and vibration free
- Virtually no heat emissions
- Temperature sensor
- S.M.A.R.T. support
- TRIM support (OS/driver support required)
- High-reliability 3D TLC NAND flash
- Supports Security Erase
- SATA 3.0 (6Gb/s) interface (backwards compatible with SATA 2.0 (3Gb/s) and SATA 1.0 (1.5Gb/s))
- Device Sleep mode (DEVSLP) supported for ultra low idle power consumption
- SLC caching accelerates burst performance
- Silicon Motion 3D TLC Flash controller
- StaticDataRefresh technology ensures data integrity
| Brand | |
|---|---|
| Brand | Axiom Memory Solutions |
| Storage | |
|---|---|
| Storage Capacity | 250 GB |
| Drive Type | Internal |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Endurance (TBW) | 150 TB |
| Endurance (DWPD) | 0.57 |
| Maximum Read Transfer Rate | 550 MB/s |
| Maximum Write Transfer Rate | 500 MB/s |
| Power & Battery | |
|---|---|
| Operating Power Consumption | 2.10 W |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | No |
| General Features | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
