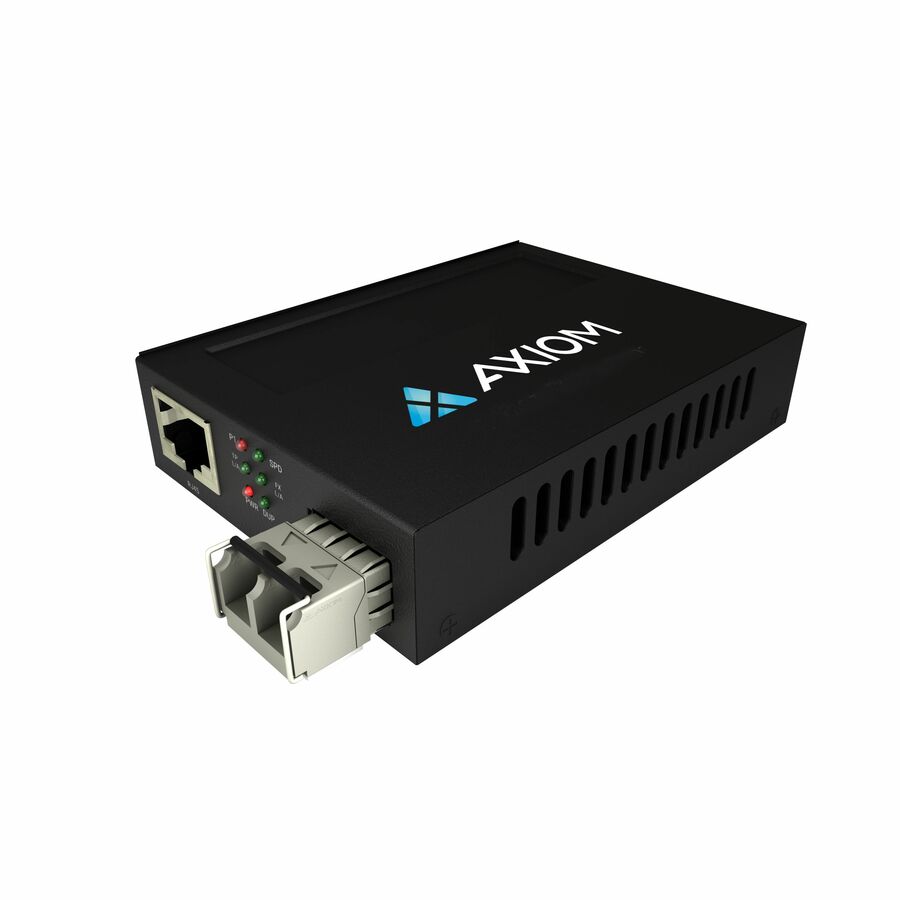

Axiom 1Gbs PoE+ RJ45 to 1000Base-SX Fiber Media Converter - MMF, LC, 550m, 850nm

$ 164.99 $ 164.99
$ 164.99

$ 164.99 / Units
  • Brand
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Network Technology
  • Network (RJ-45)
  • Number of PoE+ (RJ-45) Ports
  • PoE Port Type
  • Fiber Mode Supported
  • Total Number of Ports
  • Number of LC Ports
  • Fiber Optic Cable Wavelength
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Media Type Supported
  • Maximum Distance Supported
  • TAA Compliant
  • Certifications & Standards
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).

Features:

  • 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
  • IEEE802.3at PoE+ PSE compatible
  • Built-in AC/DC power supply
  • Over-current protection
  • DIP switch to set different configurations
  • LFP (Link Fault Pass-through) support"
  • With Twisted Pair cable, get the desired data transfer rate up to a required distance
  • Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
  • With 1000Base-SX technology get up to 1000Mbps data transfer rate over twisted pair cable
Brand
Brand Axiom Memory Solutions
Power & Battery
Power Source AC/DC
Networking & Connectivity
Network Technology 1000Base-FX
Ethernet Port
Network (RJ-45) Yes
Number of PoE+ (RJ-45) Ports 1
PoE Port Type PSE
General Features
Maximum Data Transfer Rate 1000 Mbit/s
Maximum Distance Supported 0.55 km
Manufacturer Axiom Memory Solutions
Misc Ports
Total Number of Ports 2
Number of LC Ports 1
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Cables
Fiber Mode Supported Multi-mode
Fiber Optic Cable Wavelength 850 nm
Compliance & Certification
TAA Compliant Yes
Axiom 1Gbs PoE+ RJ45 to 1000Base-SX Fiber Media Converter - MMF, LC, 550m, 850nm - Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x LC Ports - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-TX, 1000Base-FX - 1000 Mbit/s - 0.55 km - AC/DC - TAA Compliant
