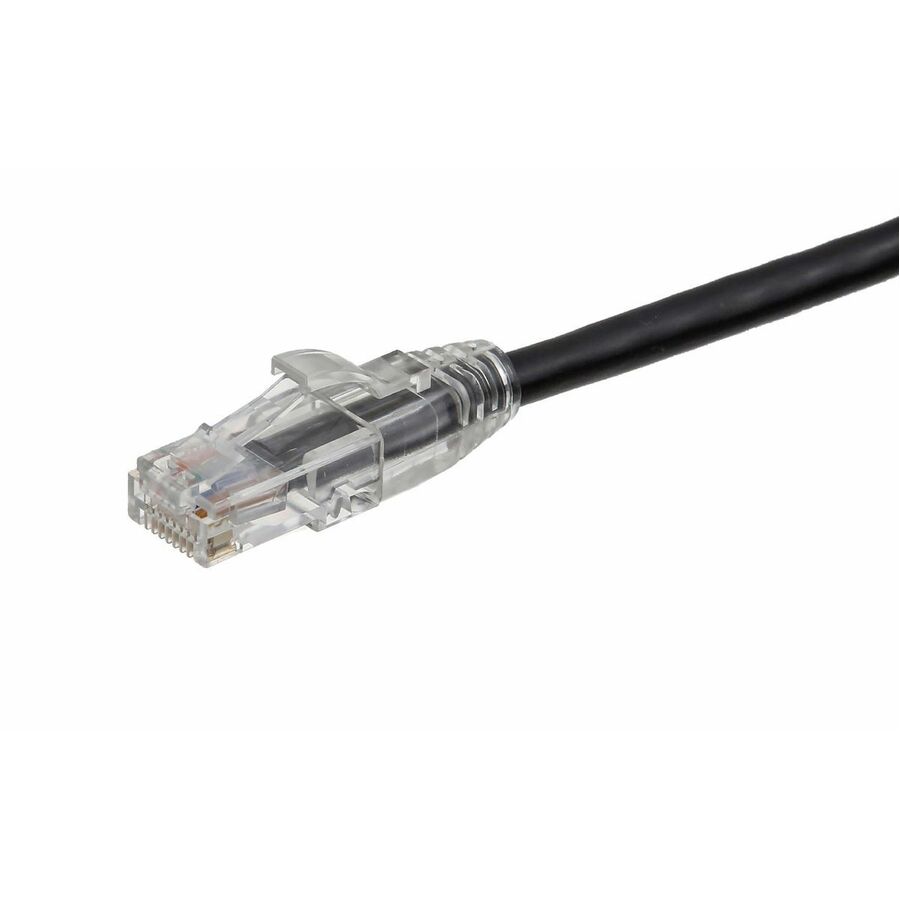

Axiom's Category 6 shielded cables are made of (4) twisted 26AWG pure copper wire pairs. Each pair is foil-shielded and also the 4 pairs have an overall braided shield. This double shielding structure provides a maximum EMI protection. The snagless boot protects the locking tabs on the RJ45 connectors from being damaged. Our Category 6 shielded cables are offered in a variety of lengths from 6 inch to 100 feet and are available in 9 different colors
Conductor: 4-pair (S/FTP) 26 AWG stranded copperProvides EMI/RFI shielding in Ethernet networksFoil shield: Aluminum foil (100% coverage)Braided shield: Copper braid (40% coverage)Connector: 50 micron gold-plated RJ45Wiring: T568B standardJacket: PVCStandard: Category 6 Compliant with TIA/EIA standard by UL and ETL; RoHS CompliantMolded Rubber Boots with Strain ReliefRohs Compliant550mhzJacket Diameter: 6.2 +/- 0.20mmMin Avg. jacket Thickness: 0.58mmBackward Compatible with Cat 5 & Cat 5E NetworksAvailable in all lengths from 1ft-100ftColors: K= Black, B= Blue, G=Gray, N=Green, O=Orange, P= Purple, R= Red, W=White, Y= Yellow
