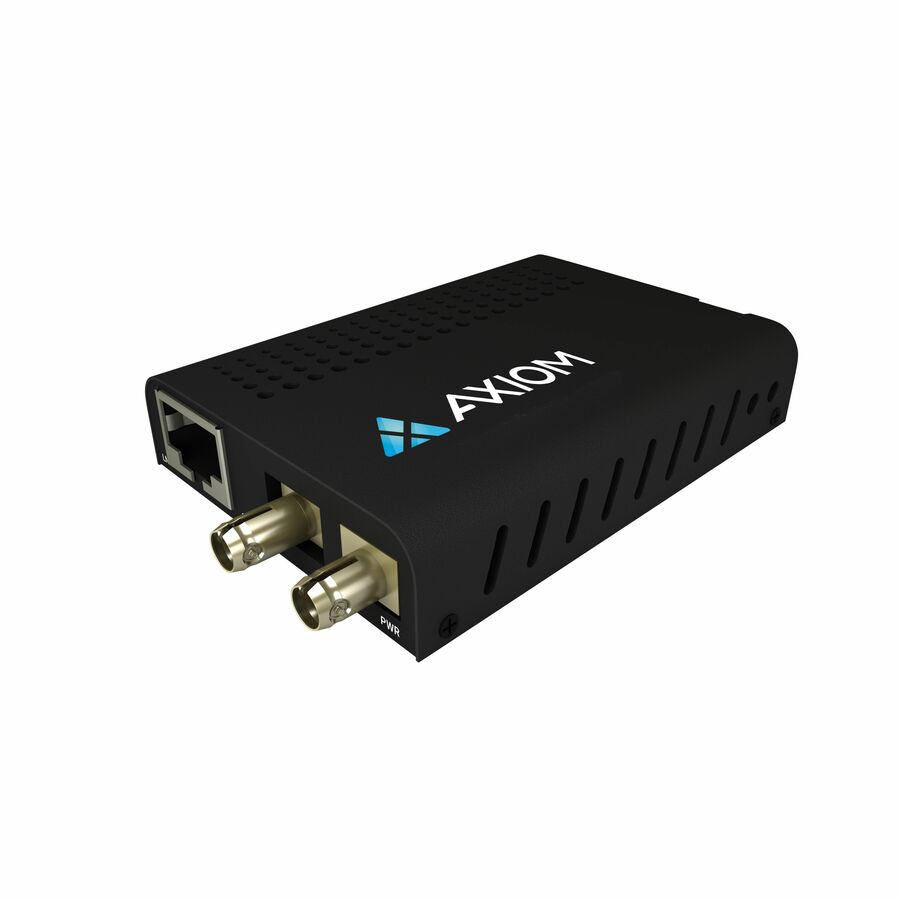

The Axiom 100Mbps POE (PSE) Series are a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet). Features:
- 10/100Base-TX UTP to 100Base-FX fiber media conversion
- IEEE802.3af PoE PSE compatible
- Built-in AC/DC power supply
- Over-current protection
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 100Base-T technology get up to 100Mbps data transfer rate over twisted pair cable
| Brand | |
|---|---|
| Brand | Axiom Memory Solutions |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-FX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| General Features | |
|---|---|
| Maximum Distance Supported | 2 km |
| Manufacturer | Axiom Memory Solutions |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Number of ST Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
