AVerMedia Engineering Kit D131 built with NVIDIA® Jetson Orin™ NX Module. This efficient SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.

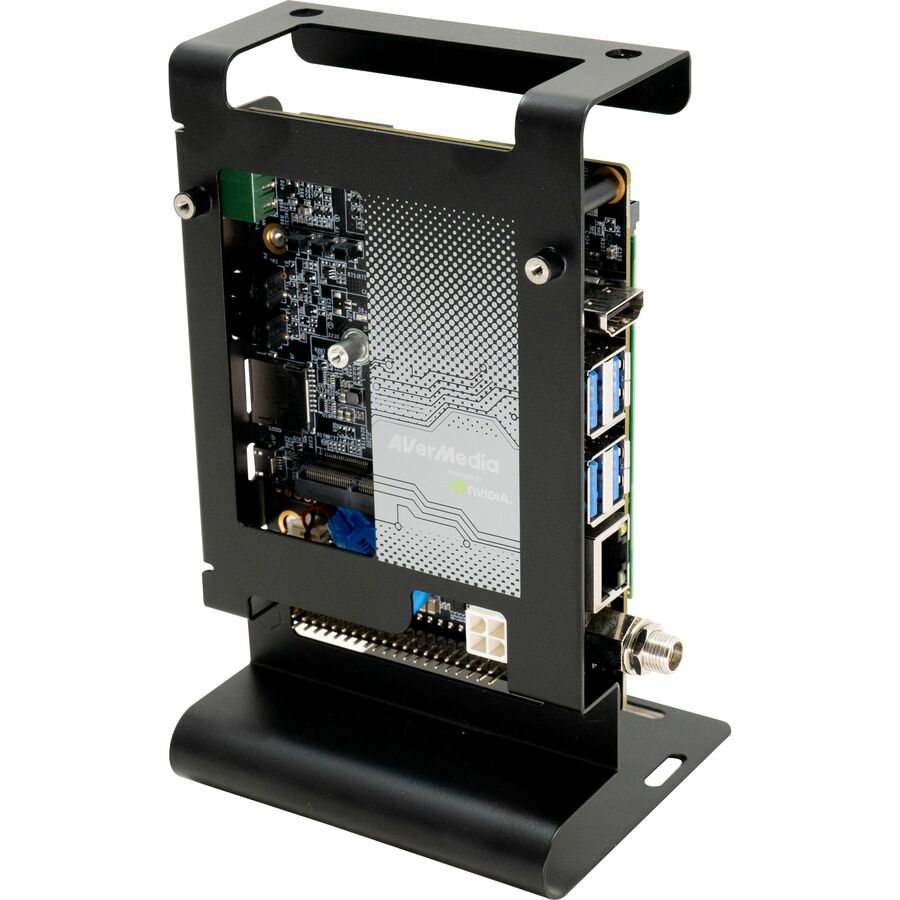

D131 is a ready-to-use product that integrates cameras, SSD, and thermal solutions to deliver an optimized user experience via its vertical mechanical design. The power input and expanded 40-pin are both designed at the bottom side to avoid cable interference. In addition, the capability of multi-camera support and its compact size design are also notable.
Key Industries
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
AMRs
AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.
Smart Security
Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.
Smart Inspection
Smart inspection relies on live camera feeds to benefit from fast and accurate detection to improve quality control in production.
- Ready to use: Simply plug in the AC power, and voilà, you're ready to embark on your AI adventure without the hassle of setup.
- Jetpack SDK: Pre-installed with the AVerMedia Jetpack SDK, takes advantage of the same AI software stack used across all NVIDIA Jetson products.
- AI solution: The most comprehensive solution for creating AI applications and platforms, whether it's for training or deploying AI software.
| Brand | |
|---|---|
| Brand | AVerMedia Technologies |
| Power & Battery | |
|---|---|
| Power Cord Localization | Australia |
| Input Voltage Range | 9 V - 24 V |
| Input Voltage | 12 V DC |
| Input Current | 5 A |
| Power Source | DC |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 1 Type- | 4 |
| Number of Micro USB 2.0 Type- | 1 |
| HDMI Ports | |
|---|---|
| Number of HDMI 2.0 Ports | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| PoE (RJ-45) Port | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| General Features | |
|---|---|
| Manufacturer | AVerMedia Technologies, Inc |
| Expansion Slots | |
|---|---|
| Expansion Slot Type | M.2. Key M 2280 |
| Misc Ports | |
|---|---|
| MIPI Camera Input | 1 x 36-pin 4 Lane MIPI CSI-2 0.5mm FPC Pitch Connector |
| Compliance & Certification | |
|---|---|
| Maximum Relative Humidity (No | 95% |
| Maximum Operating Temperature | 158°F (70°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Storage Temperature | 185°F (85°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
