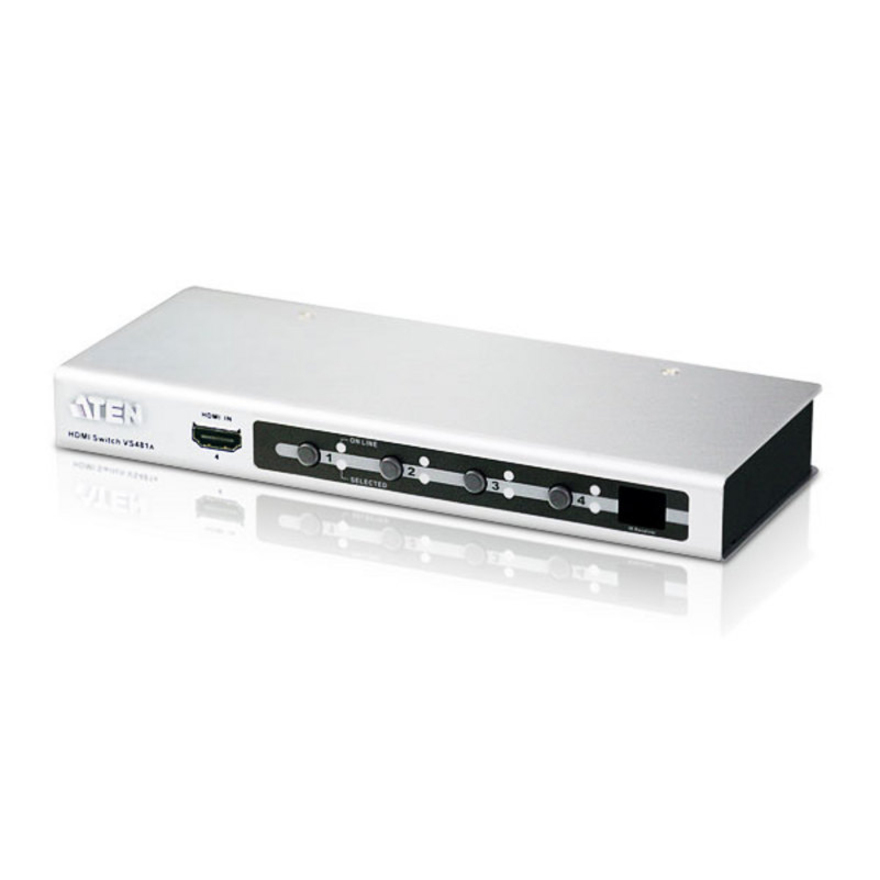

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel's LEDs indicate the source device selected for the display at a glance.
The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Instant switching between HDMI input sources
- Consumer Electronics Control (CEC) support
- Supports Dolby True HD and DTS HD Master Audio
- Auto switching modes for auto port selection
- Long distance transmission - up to 15 m (24 AWG)
- HDMI (3D, Deep Color, 4kx2k); HDCP 2.2 compatible
- Supports 340MHz bandwidth for ultrahigh 4kx2k video
- Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
- Allows up to four HDMI A/V sources to be connected to one HDMI display
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 1 |
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Cable |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 4 |
| Number of HDMI Inputs | 1 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 4 |
| General Features | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Number of Input Devices Supported | 4 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN VS481B 4-Port HDMI Switch - 4096 x 2160 - 4K - 4 x 1 - Computer, Set-top Box, DVD Player, Display, Projector, TV - 4 x HDMI Out
