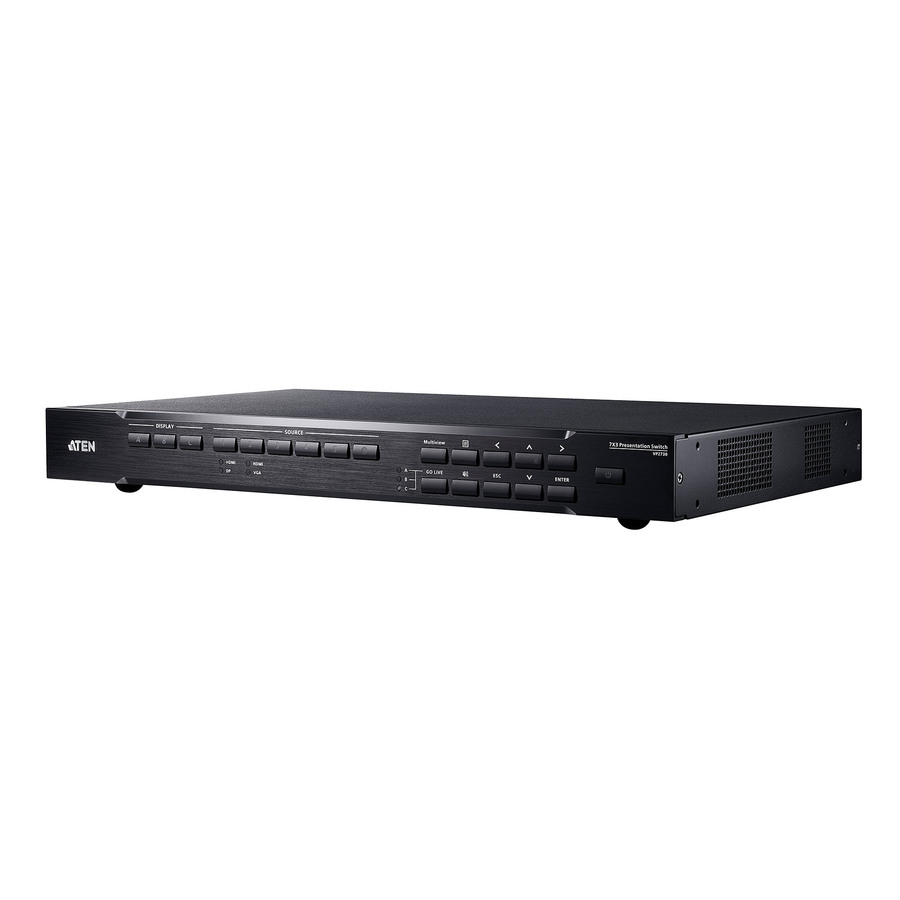

VP2730 is a multi-in-one presentation switch that integrates video matrix switch with scaler, streaming, audio mixer, HDBaseT extender, and analog-to-digital converter functions into one compact device. With seven multi-format inputs to two HDMI and one HDBaseT high-definition outputs, VP2730 empowers larger meetings and facilitates collaboration between local and remote participants in boardrooms, video conferencing rooms, lecture halls or distance learning classrooms.
With the user in mind, VP2730 comes with a straightforward and accessible OSD and Web GUI to streamline operation for both local and remote participants. To facilitate sharing and collaboration with no distance limitations, VP2730 not only allows the meeting moderator to share video content to up to five remote sites, but also enables remote sites or local participants to wirelessly stream in their content for discussion. The moderator can monitor and switch among sources in any variation of full-screen, dual-view, tri-view, quad-view or PIP modes, with up to six sources displayed simultaneously on one screen.
VP2730 also features more advanced meeting management functions: Moderator Mode enables the meeting moderator to control other displays via the host display; Chat Room facilitates meeting communications; while Screen Capture and Freeze record and control the meeting flow. This Collaborative presentation solution facilitates distance-free content sharing along with advanced audio, simplifying AV integration via eliminating the need for numerous individual components and the compatibility challenges that accompany them.
- Audio Mixer - allows mixing of the microphone inputs to any external analog or digital audio output device
- Streaming Queuing - shares the streamed-in content approved by the meeting moderator one at a time to help manage the meeting flow
- Streaming In - remote locations can stream and share content to the meeting moderator at any distance via intuitive web GUI
- Go Live - meeting moderator can broadcast HD video streams to up to 5 remote locations
- Flexible aspect ratio conversion
- Scaler - features a video scaling function to convert input resolutions to the optimum display resolutions
- Ultra Seamless Switch™ - zero second switching that provides continuous video streams, real-time switching and stable signal transmissions
- Superior video quality up to 1080p @ 60Hz (HDMI/DisplayPort)
- 2 HDMI and 1 HDBaseT outputs
- Supports multi-format 7 Inputs: 2 combo inputs (HDMI/VGA, HDMI/DisplayPort), 3 HDMI inputs
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 3 |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Cable |
| USB Ports | |
|---|---|
| Number of USB Ports | 3 |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 2 |
| Number of HDMI Inputs | 5 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPort Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Connectivity (RJ-45 | 2 |
| Connectivity (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 7 |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Maximum Operating Distance | 229.66 ft |
| Manufacturer | ATEN Technology, Inc |
| Video Ports | |
|---|---|
| Number of VGA Inputs | 1 |
| VGA In | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
