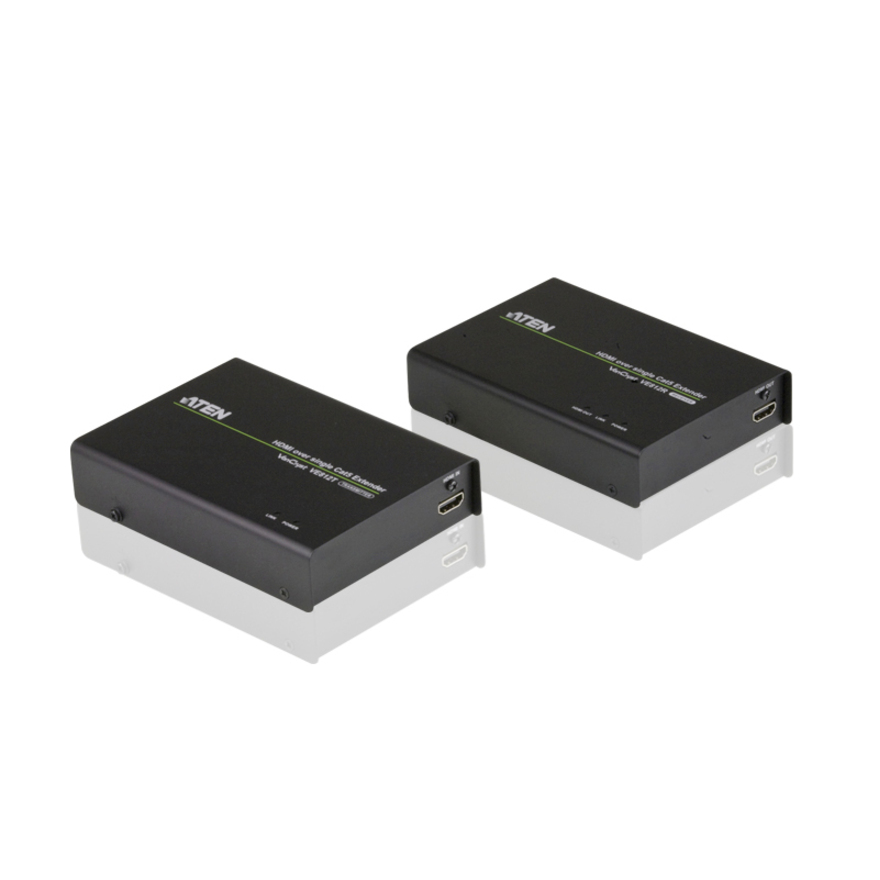

The VE812 HDMI over Single Cat 5 Extender enables an HDMI display to be located up to 100 meters away from the source device. It can conveniently be extended using only one Cat 5e cable, which is cost-effective.
The VE812 not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k x 2k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.
The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
- Supports Dolby True HD and DTS HD Master Audio
- Supports up to 340MHz bandwidth for high performance video
- Selects the optimum EDID settings for smooth power-up and highest quality display
- Long distance transmission - up to 100m
- Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- HDMI (3D, Deep Color, 4k); HDCP Compatible
- Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Power & Battery | |
|---|---|
| Input Voltage | 5.3 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| Number of HDMI Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Size / Dimensions | |
|---|---|
| Receiver Width | 4.06" |
| Receiver Weight (Approximate) | 15.17 oz |
| Receiver Height | 1.18" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 328.08 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Output Devices Supported | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 5e |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN VE812R HDMI Over Single Cat 5 Receiver-TAA Compliant - 1 Output Device - 328.08 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 4K - 4096 x 2160 - Category 5e
