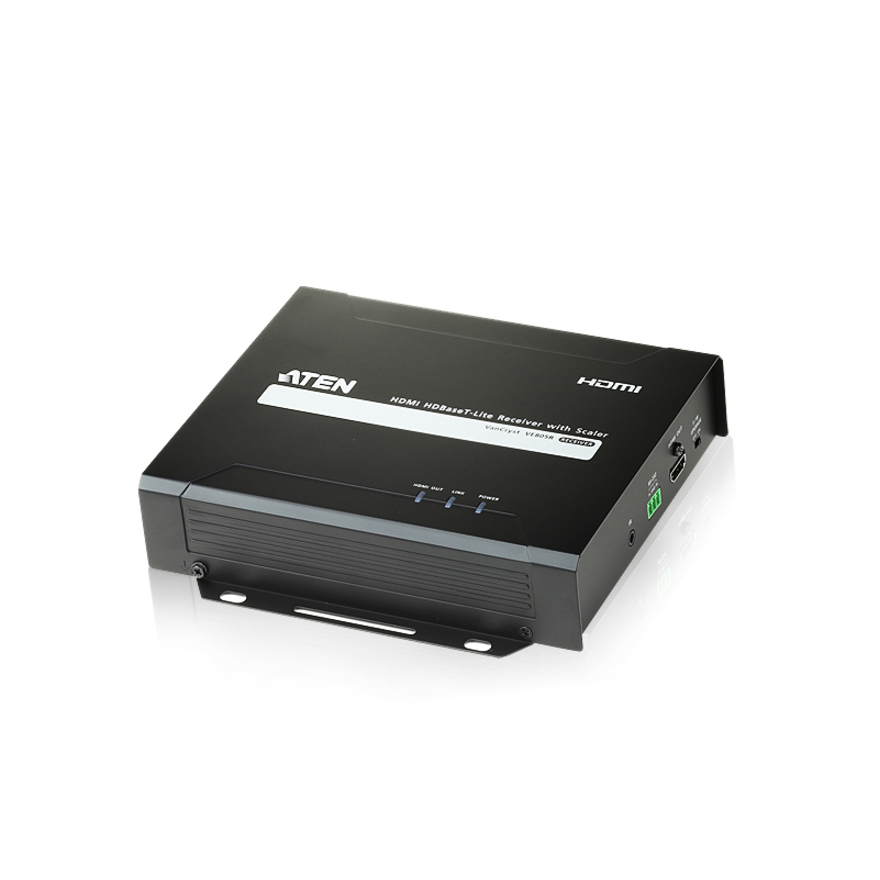

VE805R
HDMI HDBaseT-Lite Receiver with Scaler(HDBaseT Class B)
The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.
With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.
- Video Extender Transmitter/Receiver is a reliable audio/video transmission extending solution
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- The VE805R video extender transmitter/receiver provides plenty of freedom with wired connectivity
- 1 output devices supported to better accommodate your specific requirements
- 196.85 ft maximum operating distance for reliable coverage and maximum portability
- Rack-mountable video extender transmitter/receiver enables you to organize wires and secure cables for professional installation
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| Number of HDMI Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1.85 lb |
| Form Factor | Rack-mountable |
| Transmitter Depth | 7.20" |
| Transmitter Height | 1.70" |
| Transmitter Width | 6.70" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 196.85 ft |
| Manufacturer | ATEN Technology, Inc |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6a |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN VE805R HDMI HDBaseT-Lite Receiver with Scaler-TAA Compliant - 1 Output Device - 196.85 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Twisted Pair - Category 6a - Rack-mountable
