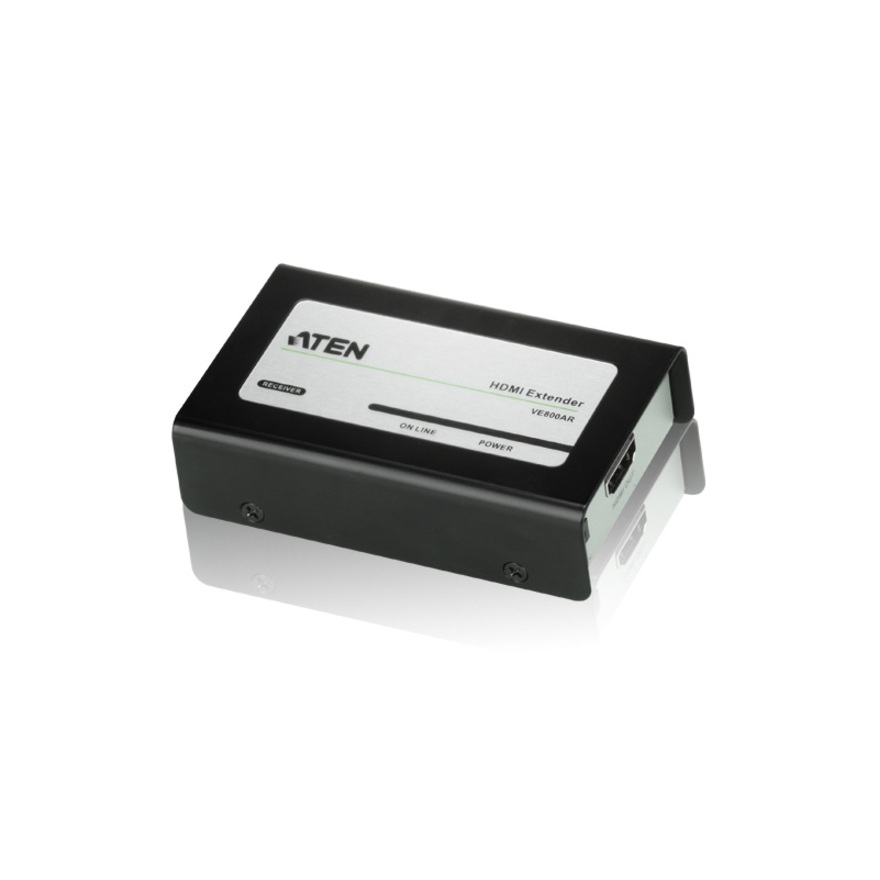

The VE800AR HDMI Receiver connects to a transmitter* to extend signals up to 60m from the source using a Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
Compatible Transmitter Units: VS1804T 4-Port HDMI Over Cat 5 Splitter
VS1808T 8-Port HDMI Over Cat 5 Splitter
- Video Extender Receiver provides efficient and feasible audio/video transmission, decoding, and extending
- 1920 x 1080 maximum video resolution for a vivid, crystal clear display with added productivity
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- The VE800AR video extender receiver provides plenty of freedom with wired connectivity
- 1 output devices supported for maximum productive usability
- 200 ft maximum operating distance to allow efficient coverage and maximum usability
- Full HD graphics mode for an immersive and sharp viewing experience
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphics Modes | Full HD |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| Number of HDMI Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1080 |
| Size / Dimensions | |
|---|---|
| Receiver Width | 2.20" |
| Receiver Weight (Approximate) | 6.40 oz |
| Receiver Height | 0.90" |
| Receiver Depth | 3.50" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 200 ft |
| Manufacturer | ATEN Technology, Inc |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 5e |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN VE800AR HDMI Receiver - 1 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 - Full HD - 1920 x 1080 - Twisted Pair - Category 5e
