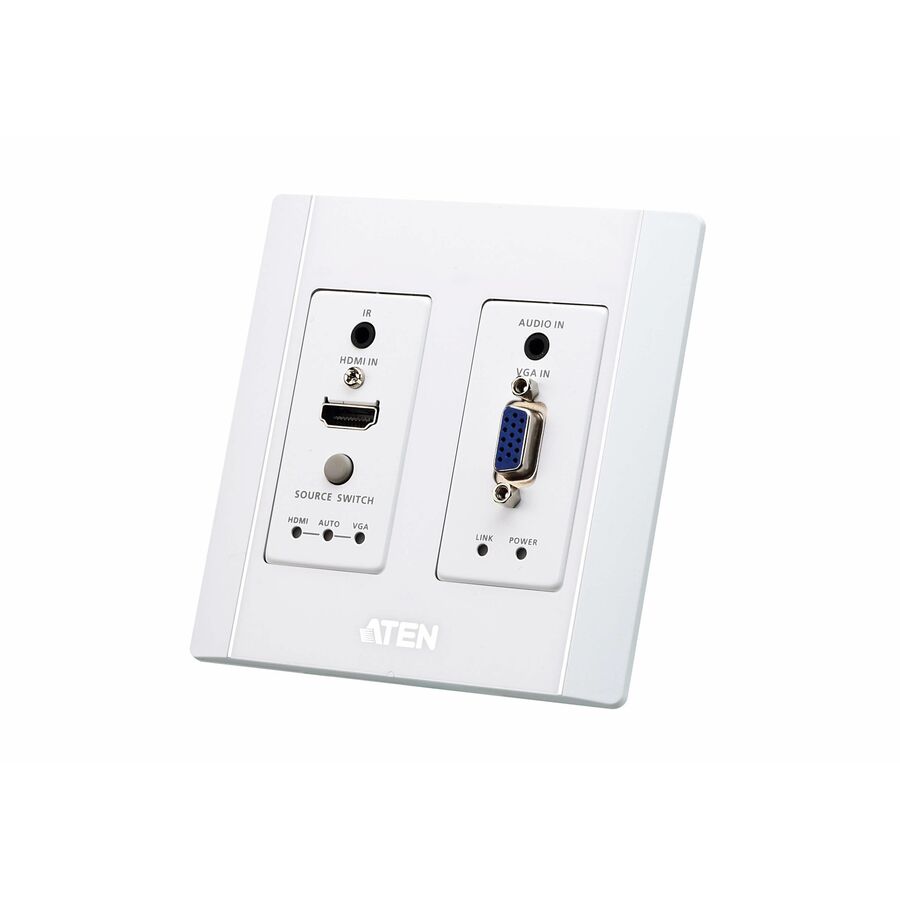

ATEN VE2812AUST is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function, the VE2812AUST receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. With US Wall Plate design, the VE2812AUST can be conveniently mounted in a two - gang junction box. The VE2812AUST guarantees reliable transmission of HDMI / VGA signals. For HDMI signal transmission, it supports 3D, Deep Color, and embedded HD lossless audio formats. To pursue longer distance transmission, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.
For utility flexibility, the VE2812AUST can serve as a video switch by connecting two sources and distribute them to an identical output. The compact wall plate design does away with bulky cables, allowing a neat and convenient installation in the wall or the table. Therefore, the VE2812AUST is specifically designed for use in meeting rooms, digital educational environment or wherever needed to meet application requirements
- Supports Auto Switch - automatically switches to a newly plugged-in source
- Built-in PoH (Power over HDBaseT) function - the VE2812AUST receives power supply from the HDBaseT output port on the connected device
- Supports HDBaseT Long Reach Mode - up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
- Extends HDMI or VGA signals over a single Cat 5e/6/6a cable, HDMI: 4K distance up to 100m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, VGA: 1600 x 1200 and 1920 x 1200 up to 100m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphics Modes | Full HD |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI In | Yes |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 2 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 7.41 oz |
| Form Factor | Table Mount |
| Transmitter Depth | 4.10" |
| Transmitter Weight (Approximate) | 7.41 oz |
| Transmitter Height | 2.04" |
| Transmitter Width | 3.46" |
| General Features | |
|---|---|
| Maximum Operating Distance | 492.13 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Input Devices Supported | 2 |
| Video Ports | |
|---|---|
| Number of VGA Inputs | 1 |
| VGA In | Yes |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6a |
