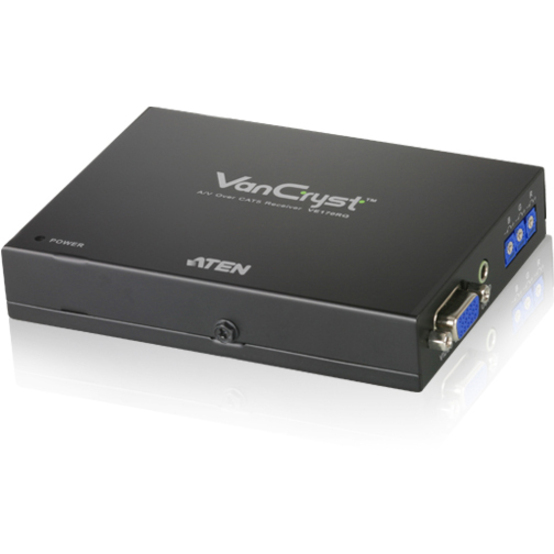

VE170RQ is the long distance receiver of the VE170 series Audio / Video extending system, it connects to a VE170T over standard CAT5e cabling [ sheilded recommended ] to a maximum distance of 1000ft. and a maximum video resolution of 1920x1200 @ 60Hz. To ensure the highest quality of video, the VE170RQ has three manual adjustments to compensate for the time shift between the Red, Green, and Blue color channels that occurs beyond 500 ft.
- Rack-mountable
- Complies with VESA FDMI mount standard
- Adjustable gain/compensation control
- Built-in 8KV/15KV ESD protection
- Audio enabled (mono)
- Superior video quality -
- 1920x1200 @ 60Hz (150 m);1280x1024 @ 60Hz (300 m)
- Long distance transmission up to 300 m
- Deskew Function - allows you to synchronize the time delay of RGB signals to compensate for distance
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphics Modes | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5.3 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Receiver Width | 3.56" |
| Receiver Weight (Approximate) | 8.80 oz |
| Receiver Height | 0.89" |
| Receiver Depth | 5.03" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 1000 ft |
| Manufacturer | ATEN Technology, Inc |
| Video Ports | |
|---|---|
| VGA Out | Yes |
| Number of VGA Outputs | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 5e |
ATEN VE170RQ Video Console-TAA Compliant - 1 Input Device - 1 Output Device - 1000 ft Range - 1 x VGA Out - WUXGA - 1920 x 1200 - Twisted Pair - Category 5e - Rack-mountable
