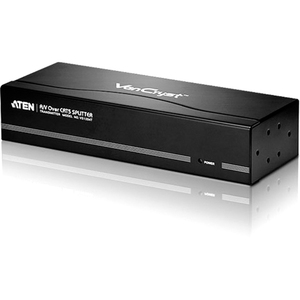

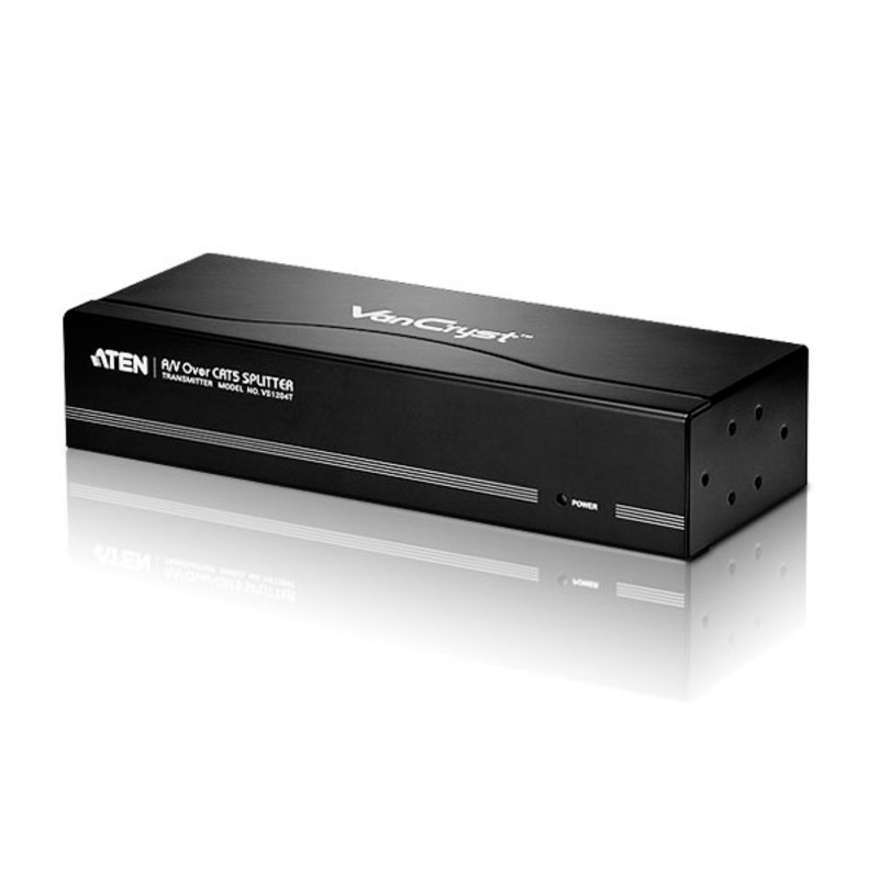

The VS1204T / VE170 system is a cost-effective, efficient solution for sending high quality audio and video content to as many as four receiving units up to a maximum of 1000 feet from the source.
Installation consists of connecting the VS1204T transmitter to your VGA / Audio source then via CAT5e cable to your VE170 receivers.
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphics Modes | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5.3 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1.30 lb |
| Form Factor | Rack-mountable |
| Transmitter Depth | 1.14" |
| Transmitter Weight (Approximate) | 1.30 lb |
| Transmitter Height | 1.70" |
| Transmitter Width | 7.90" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 5 |
| Maximum Operating Distance | 1000 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 5 |
| Video Ports | |
|---|---|
| Number of VGA Inputs | 1 |
| VGA In | Yes |
| VGA Out | Yes |
| Number of VGA Outputs | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 5e |
ATEN VanCryst VS1204T Video Extender-TAA Compliant - 1 Input Device - 5 Output Device - 1000 ft Range - 4 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - WUXGA - 1920 x 1200 - Twisted Pair - Category 5e - Rack-mountable
