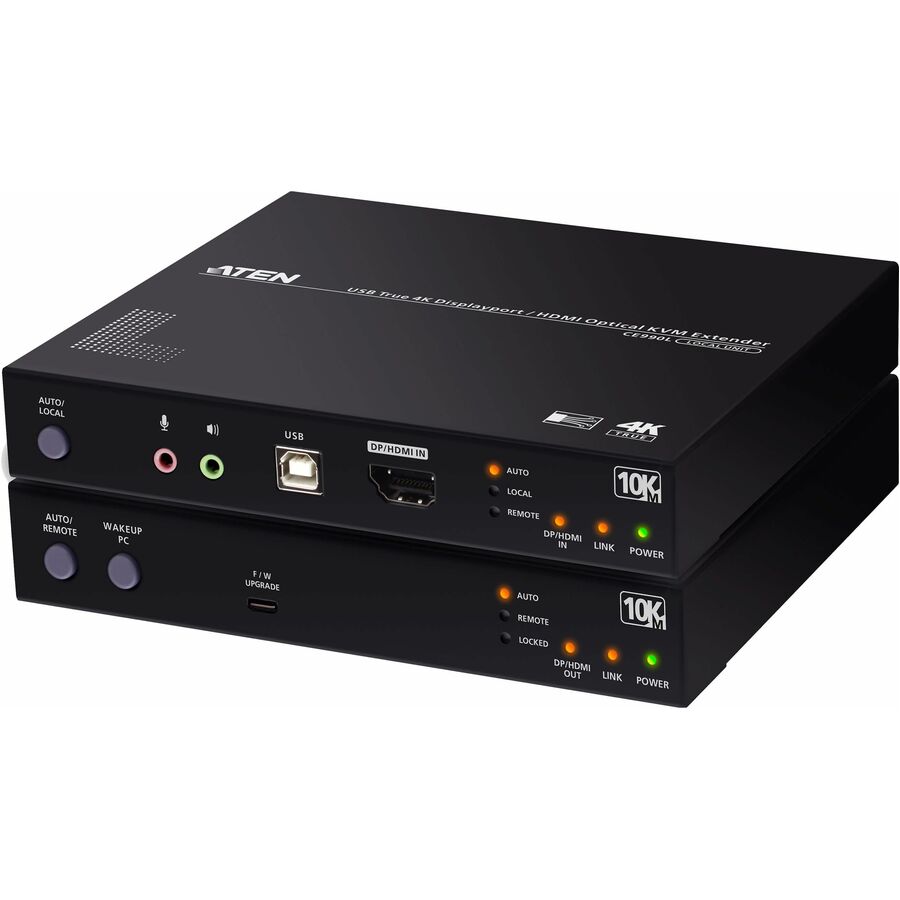

The CE990 is a USB DisplayPort/HDMI Optical KVM Extender that extends KVM signals over fiber-optic transmission up to 10 km, delivering True 4K, HDCP 2.3-compliant video quality. It features DisplayPort and HDMI connectivity via a combo connector, simplifying installation with selectable video output at both local and remote consoles. In addition to exceptional video clarity, it supports RS-232, USB 2.0 peripherals, and embedded DisplayPort/HDMI digital audio, including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, enabling versatile signal extension over a single fiber optic connection. The CE990 is ideal for critical control environments such as transportation, manufacturing, utilities, and more.
2-in-1 DisplayPort/HDMI Combo Connector
Featuring a combo connector, the CE990 supports connection to either a DisplayPort or HDMI display for both local and remote KVM installations. This versatile design supports flexible display configurations at each end, allowing mixed or matched output types between the local and remote consoles.
Pristine True 4K Clarity with HDR10
Experience unparalleled True 4K clarity (3840 x 2160 and 4096 x 2160 @60 Hz, 4:4:4) and HDR10 support, delivering optimal image accuracy, enhanced contrast, and rich colors for razor-sharp video content.
Reliable Fiber Optic KVM Extension over Long Distances
Deploying the CE990 enables long-distance KVM extension of up to 10 kilometers via a fiber optic connection, ensuring stable, interference-free transmission with inherent EMI resistance for reliable performance
Dual Console Access with Privileged Control
The CE990 enables KVM access to a computer from both local and remote consoles, facilitating efficient operational collaboration. Using the Auto/Local or Auto/Remote pushbutton, you can toggle between Auto mode (access from both consoles) and Local/Remote mode (exclusive access from either local or remote console), determining which console has privileged control over the computer.
Applications
Designed for critical control environments such as transportation, manufacturing, and utilities, the CE990 delivers stable long-distance KVM signal transmission and pristine video quality
- DisplayPort/HDMI combo connector supports both DisplayPort and HDMI video interfaces
- Extends DisplayPort/HDMI video, keyboard/mouse control, stereo/embedded audio, RS-232 control, and USB 2.0 signals over fiber optic cabling
- Ultra-long distance transmission up to 10km
- Supports True 4K video up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) with HDCP 2.2/2.3 compliance
- Supports HDR10 for enhanced video quality
- Dual console operation - supports local and remote system control with configurable privilege modes (Auto/Local and Auto/Remote) for streamlined access management and operational efficiency
- USB 2.0 Hub - supports 2 ports for USB KB/MS and 2 ports for other USB peripherals
- Easily switch EDID priority between Local and Remote via hotkey
- Supports wide screen format
- Supports dual independent stereo audio - mic and speaker
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | 4K UHD |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 10 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 3 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Number of Remote Users Suppor | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1.87 lb |
| Receiver Length | 7.02" |
| Transmitter Length | 7.02" |
| Form Factor | Rack-mountable |
| Receiver Width | 6.15" |
| Receiver Weight (Approximate) | 1.85 lb |
| Receiver Height | 1.13" |
| Transmitter Height | 1.13" |
| Transmitter Width | 6.15" |
| General Features | |
|---|---|
| Maximum Operating Distance | 32808.40 ft |
| Manufacturer | ATEN Technology, Inc |
| Device Type | KVM Extender |
