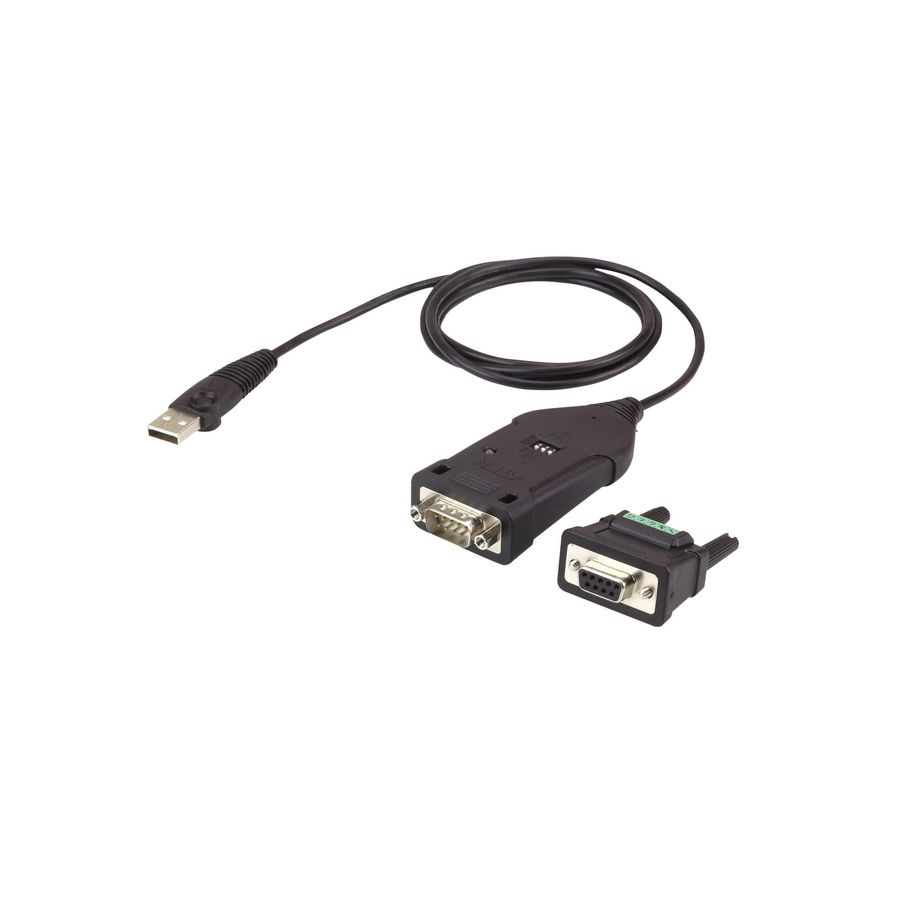

The ATEN UC485 is a high quality industrial adapter cable designed to instantly add an RS-422/485 port to your PC or laptop via a USB port. The adapter is powered via the USB connection without needing an external power supply.
The UC485 adapter lets you use a single USB connection to create plug-and-play serial transfers without additional cables or complicated device installations. It lets you connect any RS-485 or RS-422 device to your computer's USB port, without experiencing computer lock-ups, I/O or driver problems. It is the ideal solution for connecting industrial devices such as laboratory machines, measuring equipment, automated systems, monitoring devices, and many more - where mission-critical applications are required.
- Supports Windows Vista / 7 and above, Mac and Linux
- Plug-and-Play - no power supply needed
- Supports Terminal / ECHO mode by mode selector
- Fast COM Port Transmission - up to 921.6 Kbps
- Package included DB-9 female to terminal block adapter for easy wiring
- Converts a USB port to a Legacy RS-422 or RS-485 COM port
| Brand | |
|---|---|
| Brand | ATEN Technology |
| General Features | |
|---|---|
| Data Transfer Rate | 921.6 kbit/s |
| Manufacturer | ATEN Technology, Inc |
| Cables | |
|---|---|
| Cable Length | 3.94 ft |
| Cable Type | Serial/USB |
| Connector Type on First End | USB 2.0 Type A - Male |
| Connector on First End Details | 1 x USB 2.0 Type A - Male |
| Connector Type on Second End | DB-9 RS-422/485 Serial - Male |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
