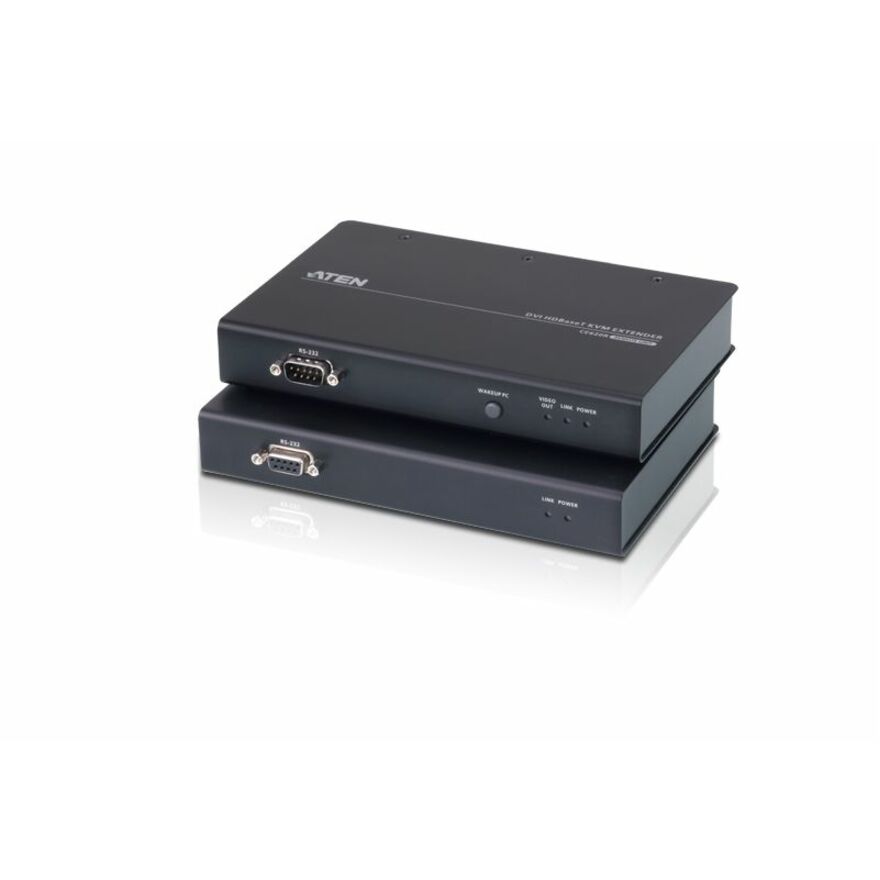

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat5e/6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required - in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.
- Built-in 8KV/15KV ESD pr otection (Contact voltage 8KV; Air voltage 15KV)
- Supports PC Wakeup function via pushbutton or hotkey
- Supports 2-channel PCM digital audio - ensuring highquality audio transmissions
- Integrated USB 2.0 ports - ensuring fast transmission speeds for peripherals
- Long Reach mode switch - switches between HDBaseT™ Standard and Long Reach modes in a snap
- HDBaseT™ Long Reach mode up to 1920 x 1080 @ 150 m
- HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m
- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- EDID Buffer for smooth power-up and the highest quality display
- Extends video, audio, USB and RS-232 signals via a single Ethernet cable
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 4 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Headphone | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Audio | |
|---|---|
| Microphone | Yes |
| Software & Licensing | |
|---|---|
| Number of Remote Users Suppor | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1.39 lb |
| Form Factor | Rack-mountable |
| Receiver Width | 4.83" |
| Receiver Weight (Approximate) | 1.41 lb |
| Receiver Height | 1.13" |
| Receiver Depth | 7.17" |
| Transmitter Depth | 7.17" |
| Transmitter Height | 1.13" |
| Transmitter Width | 4.83" |
| General Features | |
|---|---|
| Maximum Operating Distance | 492.13 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 1 |
| Video Ports | |
|---|---|
| DVI | Yes |
| Number of DVI Ports | 2 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
