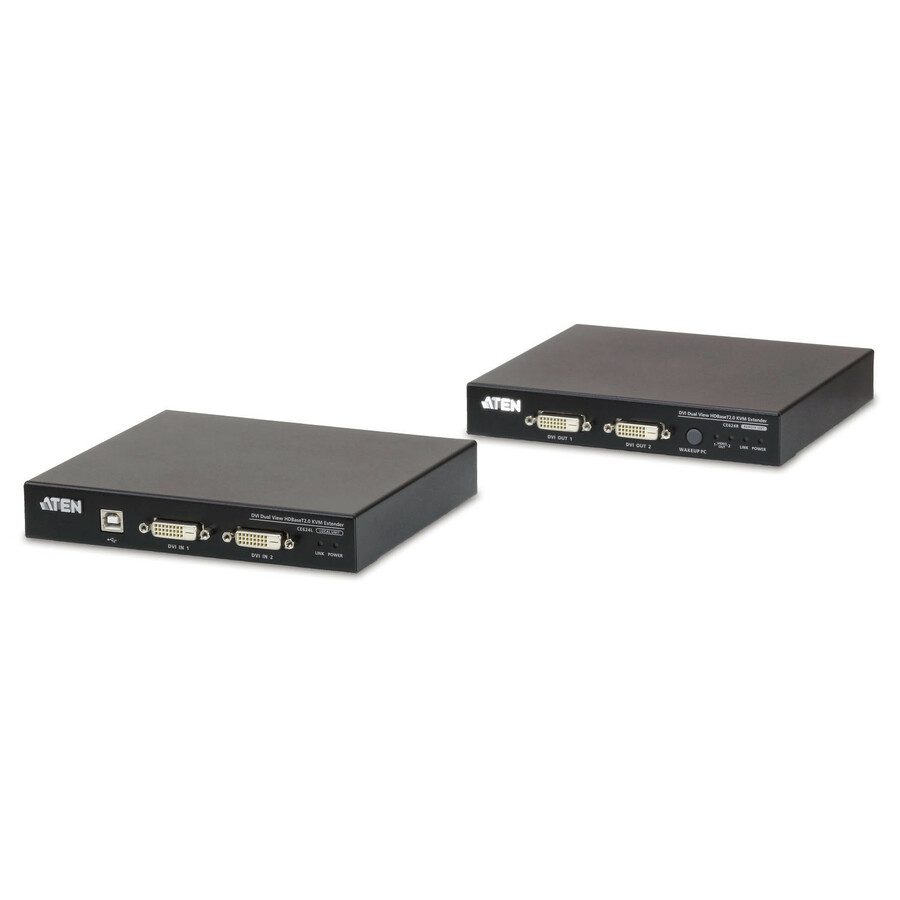

The ATEN CE624 USB DVI Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE624 delivers high-quality DVI Dual View video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat6/6a cable. With a simple cable installation supporting various signals, the CE624 is ideal for applications where convenient remote access is required - in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.
- Integrated USB 2.0 ports - ensuring fast transmission speeds for keyboard, mouse and peripherals
- Long Reach mode switch - switches between HDBaseT™ Standard and Long Reach modes in a snap
- HDBaseT™ Long Reach mode up to 1920 x 1080 @ 150 m
- HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m
- Long distance superior video quality
- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- EDID Buffer for smooth power-up and the highest quality display
- Extends video, audio, USB and RS-232 signals via a single Cat6/6a cable
- HDBaseT™ 2.0 connectivity technology
- Allows DVI Dual View access to a computer and KVM control from a remote console
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 4 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Audio Ports | |
|---|---|
| Headphone | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Audio | |
|---|---|
| Microphone | Yes |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Number of Local Users Supported | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1.76 lb |
| Receiver Width | 6.28" |
| Receiver Weight (Approximate) | 1.79 lb |
| Receiver Height | 1.13" |
| Receiver Depth | 6.86" |
| Transmitter Depth | 6.86" |
| Transmitter Weight (Approximate) | 1.76 lb |
| Transmitter Height | 1.13" |
| Transmitter Width | 6.28" |
| General Features | |
|---|---|
| Maximum Operating Distance | 492.13 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 2 |
| Video Ports | |
|---|---|
| DVI | Yes |
| Number of DVI Ports | 4 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN USB DVI Dual View HDBaseT 2.0 KVM Extender (1920 x 1200 @100 m)-TAA Compliant - 2 Computer(s) - 1 Local User(s) - 492.13 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 4 x DVI - 5 V DC Input Voltage - For PC
