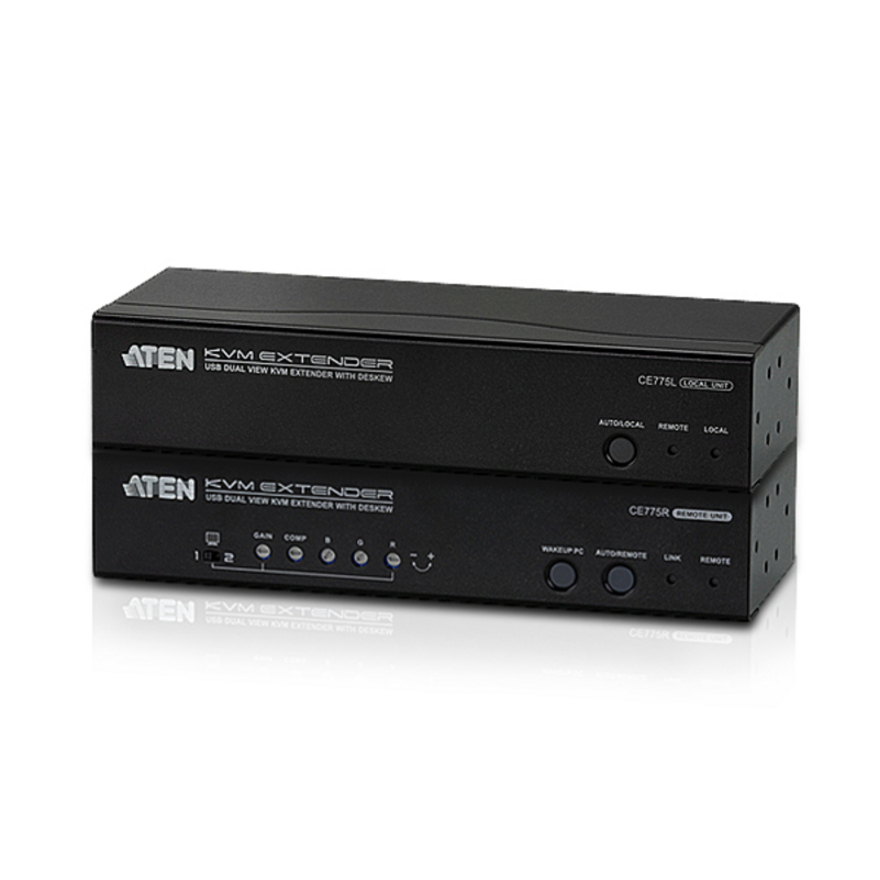

ATEN CE775 Dual View KVM Extenders with Deskew function allows access to a computer system from a remote Dual View console up to 300 m away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake - Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, effi cient and flexible.
- Sun/Mac keyboard support and emulation
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- RS-232 Channel - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
- On Screen Display - conveniently adjust video quality with the intuitive OSD menu system
- Gain/Compensation Control - adjusts signal strength in order to compensate for distance
- Superior video quality - 1920x1200@60Hz(150 m), 1280x1024@60Hz(300 m)
- PC Wakeup support - from the remote console, simply use a pushbutton to wake a computer at the local site via RS-232
- Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
- Dual Console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Dual View Support - connect two screens to transmit two video output signals to a remote site up to 300 m away using inexpensive Cat 5e/6 cables
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5.3 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 4 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Audio Ports | |
|---|---|
| Headphone | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Audio | |
|---|---|
| Microphone | Yes |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Number of Remote Users Suppor | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1.52 lb |
| Receiver Width | 41.65" |
| Receiver Weight (Approximate) | 1.52 lb |
| Receiver Height | 2.98" |
| Receiver Depth | 7.87" |
| Transmitter Depth | 7.87" |
| Transmitter Weight (Approximate) | 1.52 lb |
| Transmitter Height | 2.98" |
| Transmitter Width | 41.65" |
| General Features | |
|---|---|
| Maximum Operating Distance | 984.25 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 1 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 5 |
| Misc Ports | |
|---|---|
| Proprietary Interface | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN USB Dual View KVM Extender with Deskew-TAA Compliant - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 984.25 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 4 x Network (RJ-45) - 4 x USB - 5 x VGA - Proprietary Interface - 5.3 V DC Input Voltage
