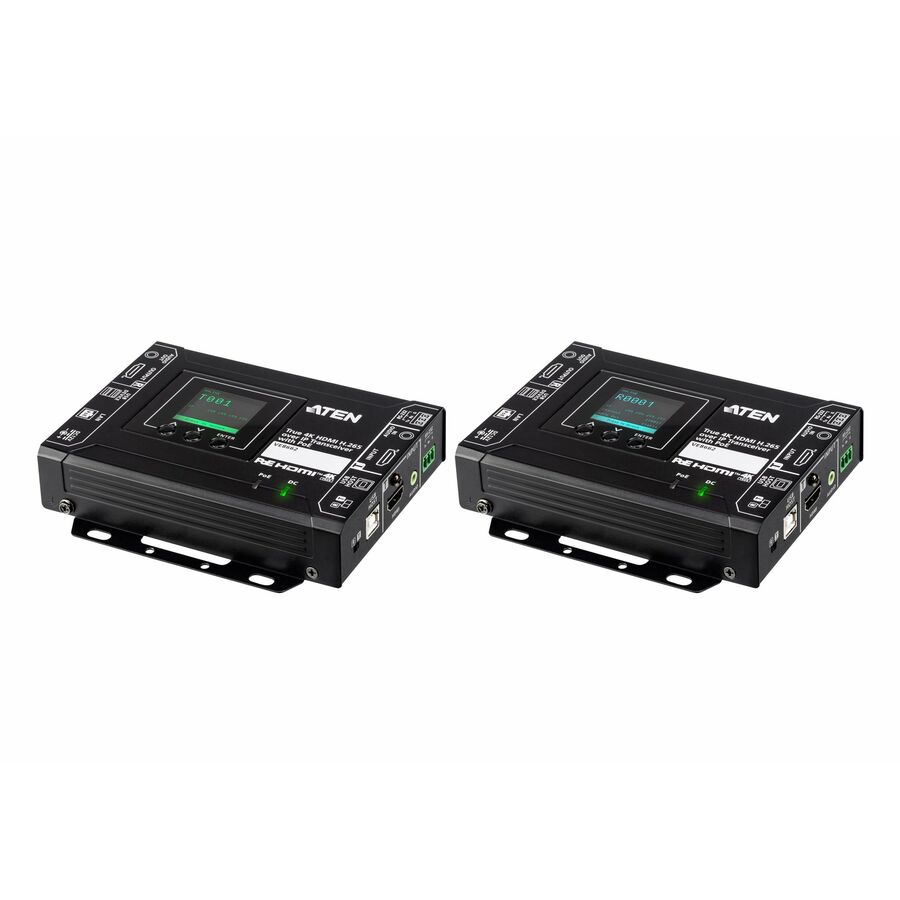

The VE8662 True 4K HDMI H.265 over IP Transceiver with PoE sets a new standard for AV transmission, combining unparalleled efficiency with crystal-clear clarity. The transceiver, functioning as either a transmitter or receiver, enables flexible AV-over-IP expansion from a simple point-to-point setup to hundreds of endpoints. Powered by H.265 video compression, the VE8662 delivers ultra-clear True 4K visuals (4K60 4:4:4, HDCP 2.2) while requiring just 100 Mbps bandwidth, ensuring stable, low-latency streaming of video, audio, and control signals over standard networks. Quickly switch between multiple sources and displays with intuitive real-time control, offering instant visual feedback for both vertical and horizontal video walls. Designed for scalable AV setups, the VE8662 perfectly fits into the ATEN Networked AV solution, expanding coverage for various digital signage scenarios, including but not limited to sports venues, transportation hubs, and also control rooms where AV content can be efficiently shared and managed across workstations and video walls for real-time distribution.
Streamlined Transceiver Setup in Seconds
The VE8662 ensures effortless setup and is easily configurable as a transmitter for video sources or a receiver for displays. Simply assign an ID number instead of complex IP settings for fast, hassle-free installation.
Optimized AV Transmission with H.265 Efficiency
The VE8662 employs the H.265 video compression standard with better compression efficiency that preserves quality while minimizing bandwidth usage, latency and signal loss, delivering sharper, more refined high-definition visuals than H.264.
Audio Embedding/De-Embedding for Flexible AV Configurations
By embedding audio directly into the HDMI signal, both audio and video are consolidated into a single connection, streamlining setup. When needed, the audio can also be de-embedded, separating it from the video stream to ensure compatibility with various audio systems.
Intuitive Web GUI Management with Customizable Layout
Managing the VE8662 is simple with its user-friendly Web GUI. Video from each source and display can be easily dragged and dropped into a customizable background or layout for better management, enabling quick switching between video sources and displays.
Integrated Video Wall Control for Collaborative Workflows
To enhance video distribution and optimize collaboration, video content can be flexibly pushed or pulled between operators and a video wall using KVM control with an On-Screen Display (OSD) menu, enabling intuitive source selection and video feed management. Additionally, Boundless Switching allows effortless switching between video sources simply by moving the mouse cursor across screens, enhancing real-time situational awareness and informed decision-making.
Dual Power Redundancy for Uninterrupted AV Excellence
Engineered for maximum stability, the VE8662's PoE (Power over Ethernet) and DC power redundancy ensures consistent uptime and reliable AV performance from unexpected power failures.
Scalable AV over IP Network Setup
The VE8662 provides a scalable AV over IP solution that integrates effortlessly into a local area network, supporting multicast streaming and scalable cascading. This ensures flexibility and convenience for dynamic AV setups at any time.
- Is compliant with most standards and supports all kinds of audio embedding and de-embedding functions
- 2160p supported video mode for pleasurable viewing and dependable usage
- 3840 x 2160 maximum video resolution for a spectacular, sharp display with added reliability
- HDMI in allows convenient transfer of content and data to video extender transceiver to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transceiver with added efficiency
- Download media from your memory card with the built-in USB along with adequate power supply
- 328.08 ft maximum operating distance for feasible operation and optimal coverage
- 4K graphics mode provides optimal video output with remarkable picture clarity
- Rack-mountable video extender transceiver enables you to organize wires and secure cables for professional installation
- Video Extender Transceiver efficiently decodes audio video signals from the input device and sends them to the receiver to enable the display on your digital si
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 3 |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1.12 lb |
| Form Factor | Rack-mountable |
| Receiver Width | 3.98" |
| Receiver Weight (Approximate) | 1.12 lb |
| Receiver Height | 1.14" |
| Receiver Depth | 5.35" |
| Transmitter Depth | 5.35" |
| Transmitter Weight (Approximate) | 1.12 lb |
| Transmitter Height | 1.14" |
| Transmitter Width | 3.98" |
| General Features | |
|---|---|
| Maximum Operating Distance | 328.08 ft |
| Supported Video Modes | 480p |
| Manufacturer | ATEN Technology, Inc |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
