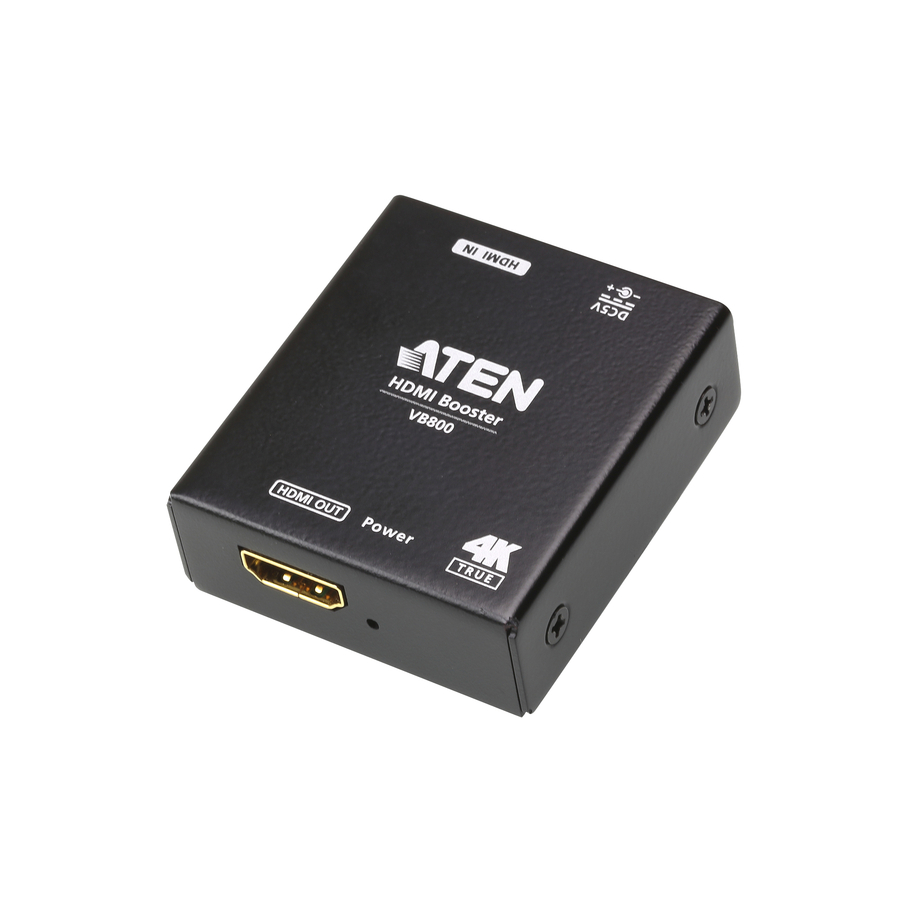

The VB800 is a true 4K HDMI booster providing a solution for long distance transmission. The HDMI booster reliably extends true 4K signals and can be cascaded up to 10 levels, guaranteeing ultimate color and image quality. The VB800 is HDMI 2.0 compliant and supports all HDMI enabled devices. The booster can be rack mounted, offering excellent flexibility for managing both work and home settings.
- Plug-and-play - No software installation required
- Rack mountable
- Supports HDR
- A single unit can be powered from the source device
- Input/output max distance for single unit: True 4k resolution up to a distance of 10 meters; 1080p resolution up to a distance of 20 meters*
- HDMI and HDCP 2.2 compatible
- 4K resolution when cascaded up to 10 levels
- HDMI (3D, Deep Color, 4K)
- Max. Data Rate 18 Gpbs (6 Gbps Per Lane)
- Superior video quality- True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4) video and standard 1080p (1920 x 1080 @ 60 Hz)
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Maximum Video Bandwidth | 600 MHz |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| General Features | |
|---|---|
| Maximum Operating Distance | 65.62 ft |
| Manufacturer | ATEN Technology, Inc |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN True 4K HDMI Booster-TAA Compliant - 4096 x 2160 - 600 MHzMaximum Video Bandwidth - 65.62 ft Maximum Operating Distance - HDMI In - HDMI Out - Metal
