The CL5708N Slideaway LCD KVMP Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708N can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708N, so that up to 256 computers can all be controlled from a single KVM console.
The CL5708N incorporates a single USB hub for sharing USB devices on a one at a time basis among first tier servers, this allows updates, and software installations to be performed from the common console, no need to connect an external drive to each server, or interfere with your network traffic.

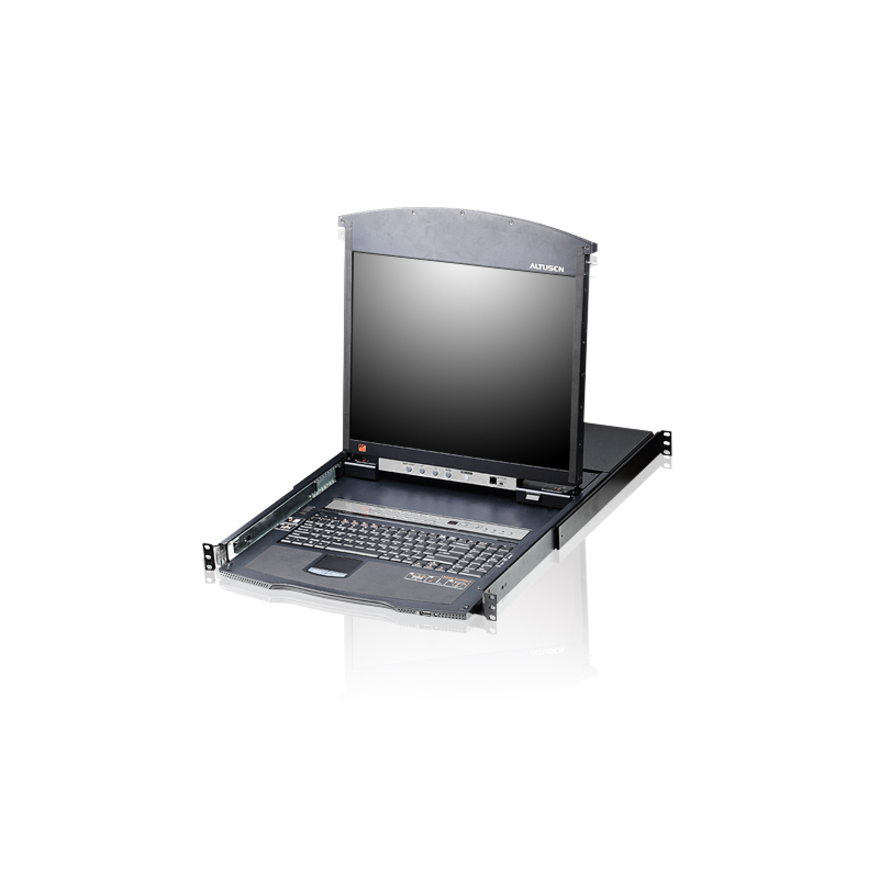

The CL5708N offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 19" LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
- Supports multimedia USB keyboards for PC, Mac and Sun
- Multiplatform support - Windows, Linux, Mac, and Sun
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- LCD module USB port allows each computer to access USB peripherals*
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- Space saving technology - up to two consoles (one bus) control up to 8 computers
- Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
- Available with or without Fingerprint Identification Reader**
- Integrated KVM console with 17" LED-backlit LCD monitor in a Slideaway™ housing
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Screen / Display | |
|---|---|
| Screen Size | 19" |
| Screen Resolution | 1280 x 1024 |
| Display Screen Type | LCD |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 1 |
| Input Devices | |
|---|---|
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| General Features | |
|---|---|
| KVM Switch | No |
| Manufacturer | ATEN Technology, Inc |
| Device Type | LCD Rack Console |
| Number of Computers Supported | 8 |
| Misc Ports | |
|---|---|
| Daisy Chain | Yes |
