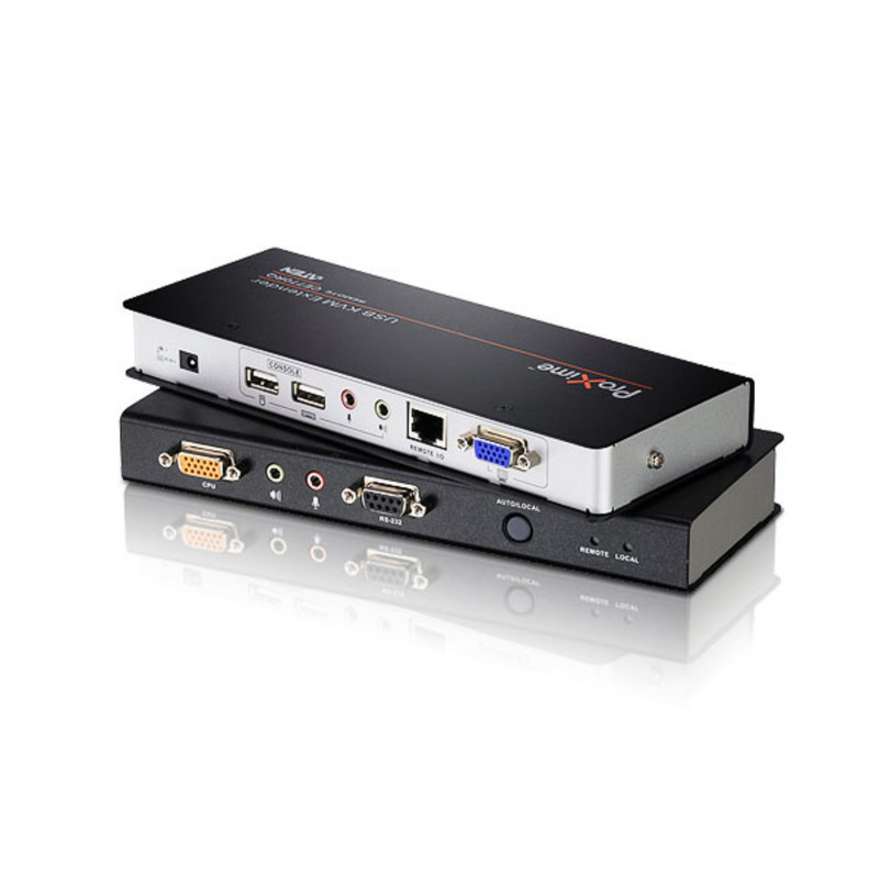

The Proxime CE770 KVM Console/Extender is a USB based KVM Extender with deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console. Proxime CE770 KVM Console/Extender supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The Proxime CE770 KVM Console/Extender's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.
- USB overcurrent detection and prevention
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
- Audio Enabled - supports stereo speakers and microphone
- Sun/Mac keyboard support and emulation
- RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC)
- Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Local and Remote Units connect at distances up to 300 m using Cat 5e cable
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WUXGA |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 4 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Headphone | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Audio | |
|---|---|
| Microphone | Yes |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Number of Remote Users Suppor | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1.08 lb |
| Form Factor | Rack-mountable |
| Receiver Weight (Approximate) | 1.06 lb |
| General Features | |
|---|---|
| KVM Technology | Analog |
| Maximum Operating Distance | 984.25 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 1 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 2 |
| Misc Ports | |
|---|---|
| Proprietary Interface | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | Proxime CE770 KVM Console/Extender |
ATEN Proxime CE770 KVM Console/Extender-TAA Compliant - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 984.25 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x VGA - Proprietary Interface - Rack-mountable
