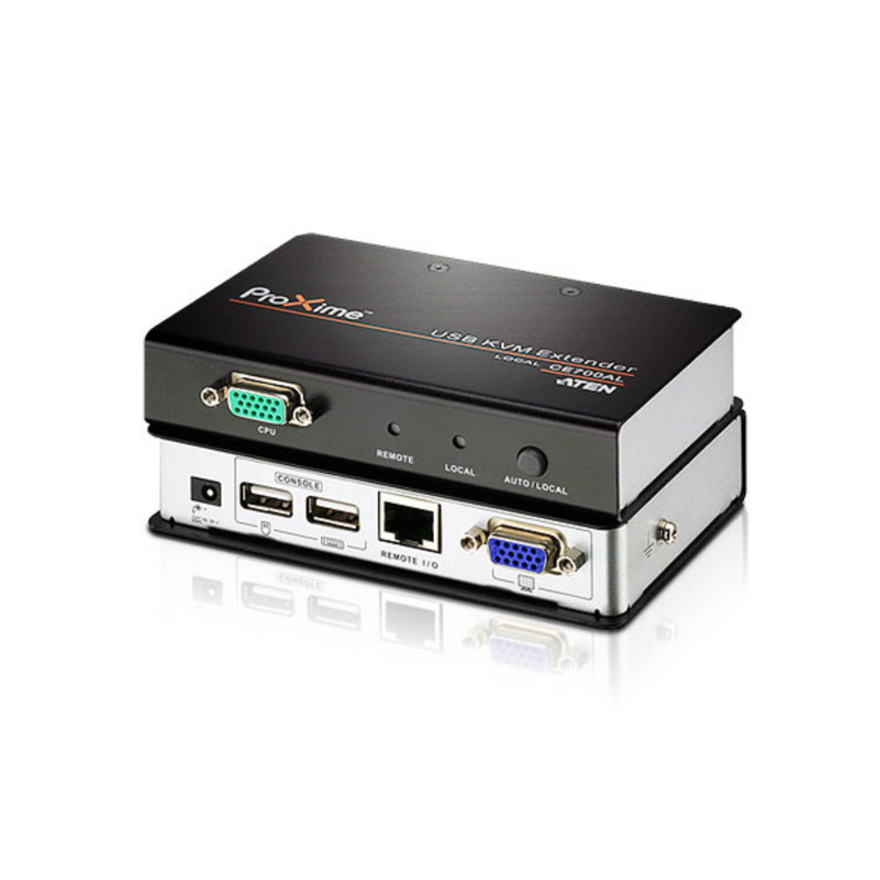

The Proxime CE700A KVM Console/Extender is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse. The Proxime CE700A KVM Console/Extender improves on previous designs by incorporating 8KV/15KV ESD protection and 2KV surge protection and providing superior video quality up to 1920 x 1200 resolution.
- High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
- Automatic gain control - adjusts signal strength to compensate for distance
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
- USB overcurrent detection and prevention
- Auto Signal Compensation (ASC)
- USB Keyboard and USB Mouse Ports
- Built-in ASIC for greater reliability and compatibility
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Cat 5e cable connects the Local and Remote Units - up to 150m apart
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5.3 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 4 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Number of Remote Users Suppor | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 11.29 oz |
| Form Factor | Rack-mountable |
| Receiver Weight (Approximate) | 10.93 oz |
| Transmitter Weight (Approximate) | 11.29 oz |
| General Features | |
|---|---|
| KVM Technology | Analog |
| Maximum Operating Distance | 492.13 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 1 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 2 |
| Misc Ports | |
|---|---|
| Proprietary Interface | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN Proxime CE700A KVM Console/Extender - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 492.13 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x VGA - Proprietary Interface - 5.3 V DC Input Voltage - Rack-mountable
