ATEN KX9970FT 5K DisplayPort KVM over IP Transmitter

2,559.99 2,559.99
2,559.99

2,559.99 / Units
  • Brand
  • Transmitter Weight (Approxima
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Number of Local Users Support
  • Transmitter Length
  • Platform Supported
  • Connectivity Technology
  • USB
  • Number of USB Ports
  • DisplayPort
  • Form Factor
  • Transmitter Height
  • Transmitter Width
  • Maximum Video Resolution
  • Input Voltage
  • Graphic Mode
  • Maximum Operating Distance
  • Packaged Quantity
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Device Type
  • Manufacturer Website Address
  • Power Consumption
  • Number of Computers Supported
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

As workplaces face restructuring and decentralization is inevitably enforced, control room operations are being challenged to pivot effectively throughout these safety protocols in the new normal. Despite manpower shortages, managing escalations with secure, precise, and timely data from real-time monitoring and dynamic collaboration has become measurably more mission-critical than ever.

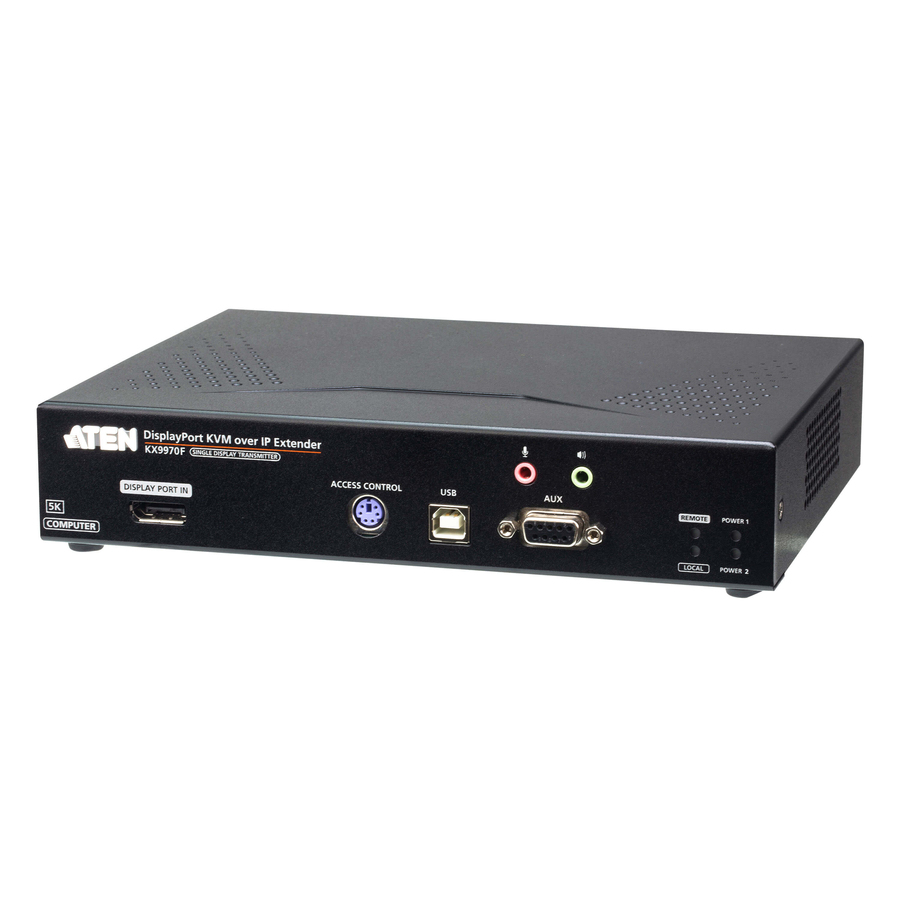

The KX9970FT is a high-performance KVM over IP transmitter that allows connection to a DisplayPort computer and enables secure, remote, and uninterrupted access to the computer from a 5K DisplayPort KVM console connected to a KX9970FR receiver over an Intranet or a dedicated LAN. With the receiver console installed at a separate location from the transmitter within a standard IP network, mission-critical control room operations become more ergonomic, user-centered, and task-oriented, while remaining separate from any adverse environmental interference.

The KX9970F expands on previous models with support for up to 10 Gbps optic fiber network connection, transcendent 5K audiovisual performance, speedy peripheral data sharing, and many other new features. This future-proof KVM over IP Matrix System solution, incorporating flexible extender connections, visual collaboration, and system control, aims to streamline control room workflows to jump start operators' productivity with KVM over IP agility.

  • Native DP signal processing with color depth up to 12 bits and support for HDR 10
  • Lossless video compression up to 5K with zero latency
  • Superior video quality - up to 5120 x 1440 @ 60 Hz (4:4:4), 5120 x 2880 @ 30 Hz (4:4:4), 4096 x 2160 @ 60 Hz (4:4:4), 1920 x 1080 @ 240 Hz (4:4:4), 2560 x 1440 @ 144 Hz (4:4:4)
  • USB isochronous transfer enables USB camera and USB speaker usage between transmitter and receiver
Brand
Brand ATEN Technology
GPU / Graphics
Graphic Mode 5K
Power & Battery
Input Voltage 12 V DC
Power Consumption 17.99 W
Networking & Connectivity
Connectivity Technology Wired
USB Ports
USB Yes
Number of USB Ports 3
DisplayPort
DisplayPort Yes
Camera / Webcam
Maximum Video Resolution 5120 x 2880
Software & Licensing
Number of Local Users Support 2
Size / Dimensions
Transmitter Weight (Approxima 2.43 lb
Transmitter Length 8.46"
Form Factor Rack-mountable
Transmitter Height 1.65"
Transmitter Width 6.42"
General Features
Maximum Operating Distance 32808.40 ft
Manufacturer ATEN Technology, Inc
Device Type KVM Extender
Number of Computers Supported 1
