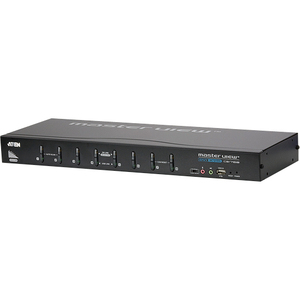

The CS1768 8-port USB DVI KVM Switch is a control unit that allows access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console. It can be cascaded to three levels allowing up to 73 CS1768s to control up to 512 computers all from the original single console. In addition, the CS1768 comes with ATEN's new Video DynaSync technology, which optimizes display resolution.
- Two-level (Administrator/User) password authorization for enhanced security protection
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- OSD Backup/Restore function - enables the administrator to back up the switch�s configuration and user profile information
- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- Multiview mode - stack up to four CS1768 units and display video from up to four monitors (dual view / triple view / quad view)
- Cascadable to three levels - control up to 512 computers
- KVM console supports a digital (DVI-D) or an analog (VGA) video output
- Computer ports support digital (DVI) and analog (VGA) video inputs* - mixed operation possible
- One USB console controls eight Single Link DVI or VGA computers and two additional USB 2.0 devices
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | QXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5.3 V DC |
| Networking & Connectivity | |
|---|---|
| Daisy Chain Supported | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 2048 x 1536 |
| Audio | |
|---|---|
| Microphone | Yes |
| General Features | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 8 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 1 |
| DVI | Yes |
| Number of DVI Ports | 9 |
ATEN KVM Switch-TAA Compliant - 8 Computer(s) - QXGA - 2048 x 1536
