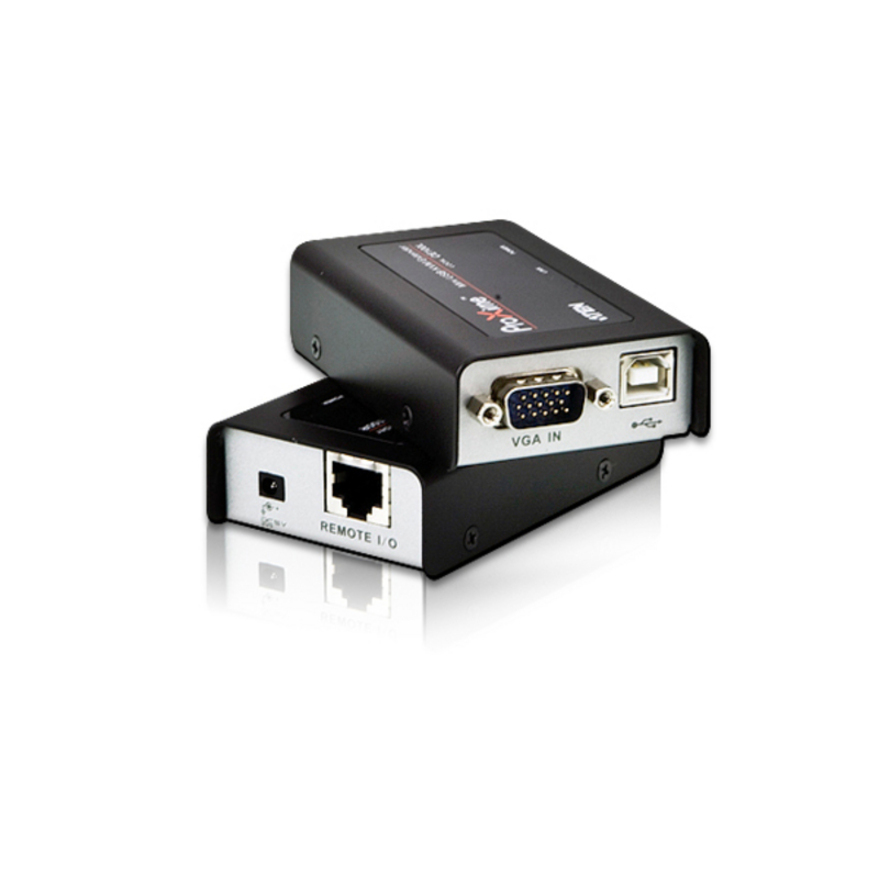

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).
The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.
- Wall mountable
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- No external power supply needed for local unit
- Allow access to a computer from the remote console up to 100 m distance
- Support manual compensation adjustment for better video quality
- Superior video quality - up to 1920 x 1200
- Supports real time DDC communication
- Easily add or remove computers connected to the installation
- Extends local PC VGA/keyboard/Mouse to Remote side
- Uses Cat 5e cable to connect the local and remote units
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 3 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| General Features | |
|---|---|
| KVM Technology | Analog |
| Frequency | 60 Hz |
| Maximum Operating Distance | 330 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 1 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 2 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN KVM Console/Extender - 1 Computer(s) - 330 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 3 x USB - 2 x VGA - 5 V DC Input Voltage
