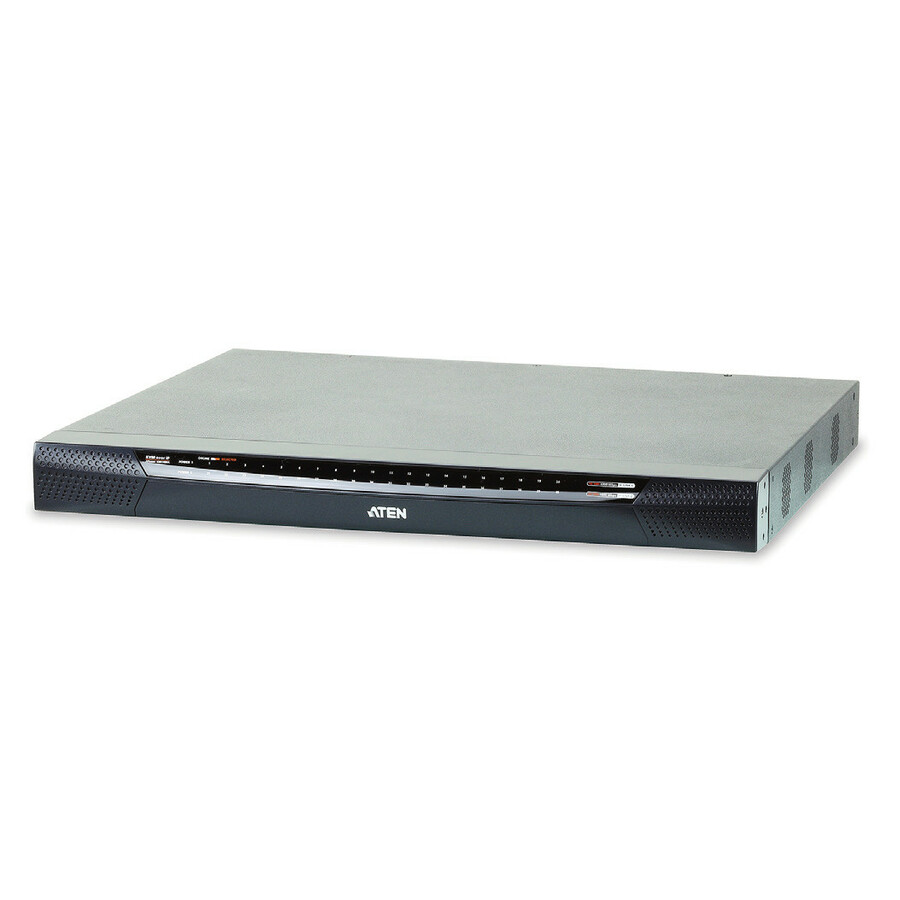

ATEN KN2140VA KVM over IP Switch-TAA Compliant

6,194.99 6,194.99
6,194.99

6,194.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Number of Local Users Support
  • Number of Remote Users Suppor
  • USB
  • Number of USB Ports
  • Network (RJ-45)
  • DVI
  • Number of DVI Ports
  • Form Factor
  • Rack Height
  • Maximum Video Resolution
  • Environmentally Friendly
  • Environmental Compliance
  • Packaged Quantity
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
  • Number of Computers Supported
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN's 4th generation of KVM over IP switches exceed expectations. The KN2140VA feature superior video quality with HD resolutions up to 1920 x 1200, FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the normal speed.

The KN Series provides a local console and remote over IP access for users to monitor and access their entire data center over a network.

Exclusive KN Series Features:

  • High-grade security - supports FIPS 140-2 level 1 security standards
  • 2x faster virtual media transmission speeds
  • Advanced FPGA graphics processor with HD resolutions up to 1920 x 1200

With dual on-board NICs and dual power supplies, the KN Series is built for reliability, to ensure 24/7 availability of remote access to all servers.

The KN Series can be integrated into ATEN's CC2000 Management Software. CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world - allowing them to remotely monitor and control all devices on a network, including blade server chassis, individual blades and virtual machines.

Additional exclusive features of ATEN KVM over IP switches include: a Message Board, Panel Array Mode™, Mouse DynaSync™ and the Adapter ID function.

ATEN KVM over IP switches save you time and money by allowing administrators to manage their data centers from practically anywhere - minimizing travel and Mean Time To Repair (MTTR) costs and ensuring the highest availability for data center services.

  • Blade server support
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
  • Two separate buses for remote KVM over IP access
  • Laptop USB Console (LUC) - a dedicated USB port directly connects to a laptop for easy console operation
  • High Port Density - RJ-45 connectors for up to 40 ports in 1U housing
  • 2x faster virtual media transmission speeds
  • Simultaneously share one local console and two independent connections to servers
  • High-Grade Security - supports FIPS 140-2 level 1 security standards
  • Advanced FPGA graphics processor with Full HD resolutions up to 1920 x 1200
Brand
Brand ATEN Technology
USB Ports
USB Yes
Number of USB Ports 5
Ethernet Port
Number of Network (RJ-45) Por 2
Network (RJ-45) Yes
Camera / Webcam
Maximum Video Resolution 1920 x 1200
Software & Licensing
Number of Local Users Support 1
Number of Remote Users Suppor 2
Size / Dimensions
Form Factor Rack-mountable
Rack Height 1U
General Features
Manufacturer ATEN Technology, Inc
Number of Computers Supported 40
Video Ports
DVI Yes
Number of DVI Ports 1
Compliance & Certification
Environmentally Friendly Yes
Miscellaneous
Product Name KN2140VA KVM over IP Switch
ATEN KN2140VA KVM over IP Switch-TAA Compliant - 40 Computer(s) - 1 Local User(s) - 2 Remote User(s) - 1920 x 1200 - 2 x Network (RJ-45) - 5 x USB - 1 x DVI - 1U - Rack-mountable
