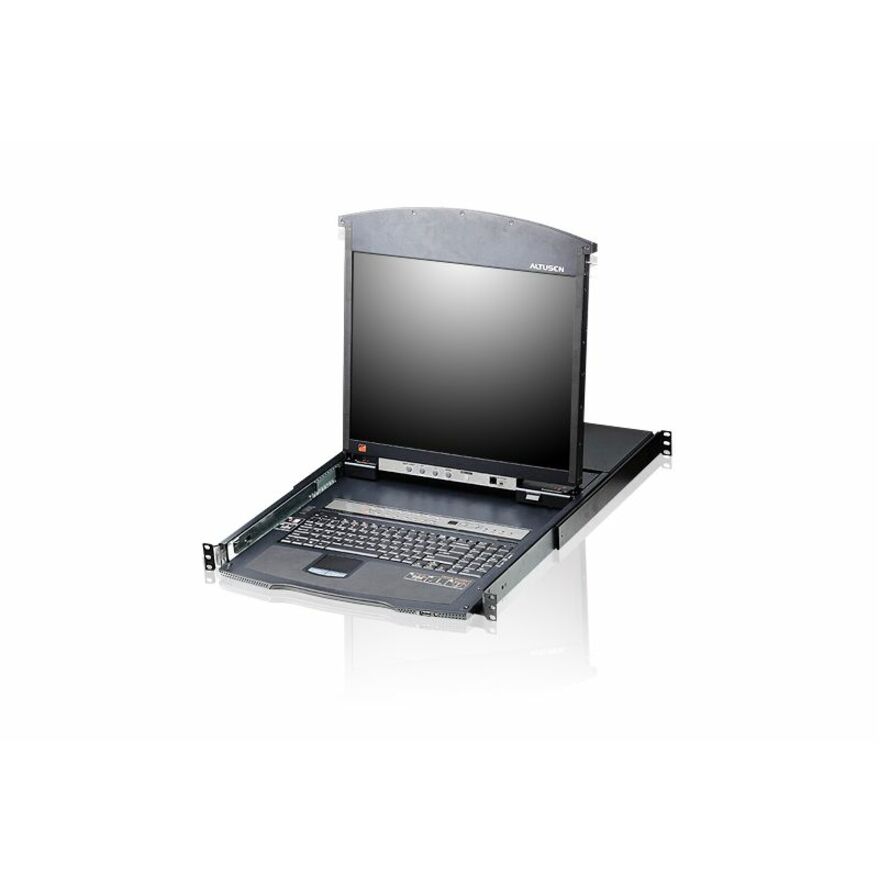

ATEN ALTUSEN KL1508A / KL1516A LCD KVM Switch features independently retractable, dual slide 17" or 19" LED-backlit LCD monitor and keyboard with built-in touchpad. The KL1508A and KL1516A KVM switches are control units that allow IT administrators to access and control multiple computers from the LCD console and an extra PS/2 or USB KVM console.
For increased reliability and efficiency, RJ-45 connectors and Cat 5e/6 cable are used to link to the computers. Utilizing KVM Adapter Cables for the final linkup, the KL1508A / KL1516A permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.
These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.
For example, the advanced Adapter ID feature stores the Adapter Cable's configuration information - such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters . Other advances found with these switches includes enhanced video quality - extending the distance to the servers to up to 50 m at a resolution of 1280 x 1024 @ 75Hz.
A KL1508A or KL1516A installation provides one of the best and most economical solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KL1508A or KL1516A KVM switch.
- Supports external USB mouse
- Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
- Conveniently located station and port selectors with LED displays to quickly switch to target computers
- OSD tree structure makes finding and managing computers easy
- KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
- Space-Saving RJ-45 connectors and Cat 5e/6 cabling
- Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Dual Rail housing
- A single console controls up to 8 (KL1508A) or 16 (KL1516A) computers
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Screen / Display | |
|---|---|
| Screen Size | 17" |
| Screen Resolution | 1280 x 1024 |
| Display Screen Type | LCD |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100 - 240 V AC |
| Input Voltage | 230 V AC |
| Input Current | 1 A |
| Power Consumption | 18.90 W |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 2 |
| Input Devices | |
|---|---|
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| General Features | |
|---|---|
| KVM Switch | No |
| Frequency | 60 Hz |
| Manufacturer | ATEN Technology, Inc |
| Device Type | LCD Rack Console |
| Number of Computers Supported | 8 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 1 |
| Misc Ports | |
|---|---|
| Daisy Chain | Yes |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
