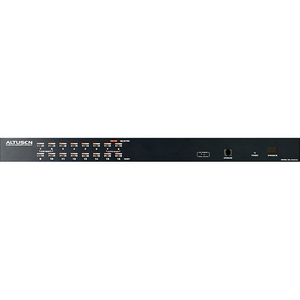

The KH1516i allows one user to control 16 computer - PC and/or Sun, as well as serial controlled 'terminal' ports. That user can be local or remote, using an integrated, shared IP connection. Through daisy chain architecture, additional non-IP enabled switches such as the KH1508 or KH1516 can be used to expand the number of computers controlled; custom ASIC (patent pending) auto senses the switch positioning the daisy chain. Cat5 cabling to the computers reduces cable bulk and allows the computers to be located up to 130 feet from the switch for convenient placement. These models are exceptionally affordable IP-enabled Cat5 equipped switches with high video quality, excellent security, and the features most in demand.
- Up to 64 user accounts
- Up to 32 concurrent logins
- Daisy-chain up to 15 additional units - control up to 256 computers from a single console
- Superior Video Quality - supports input video resolutions up to 1920 x 1200 @ 60 Hz* up to 30 meters, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters
- Multiplatform support - Windows, Mac, Sun and Linux
- Local console provides PS/2 and USB keyboard and mouse support
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- One bus for remote KVM over IP access
- A dedicated USB port directly connects to a laptop for easy Console operation
- High port density - RJ-45 connectors for up to 16 ports in a 1U housing
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | UXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 240 V AC |
| Networking & Connectivity | |
|---|---|
| Daisy Chain Supported | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 17 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1600 x 1200 |
| General Features | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 1 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 1 |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Number of PS/2 Ports | 2 |
| PS/2 Port | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
