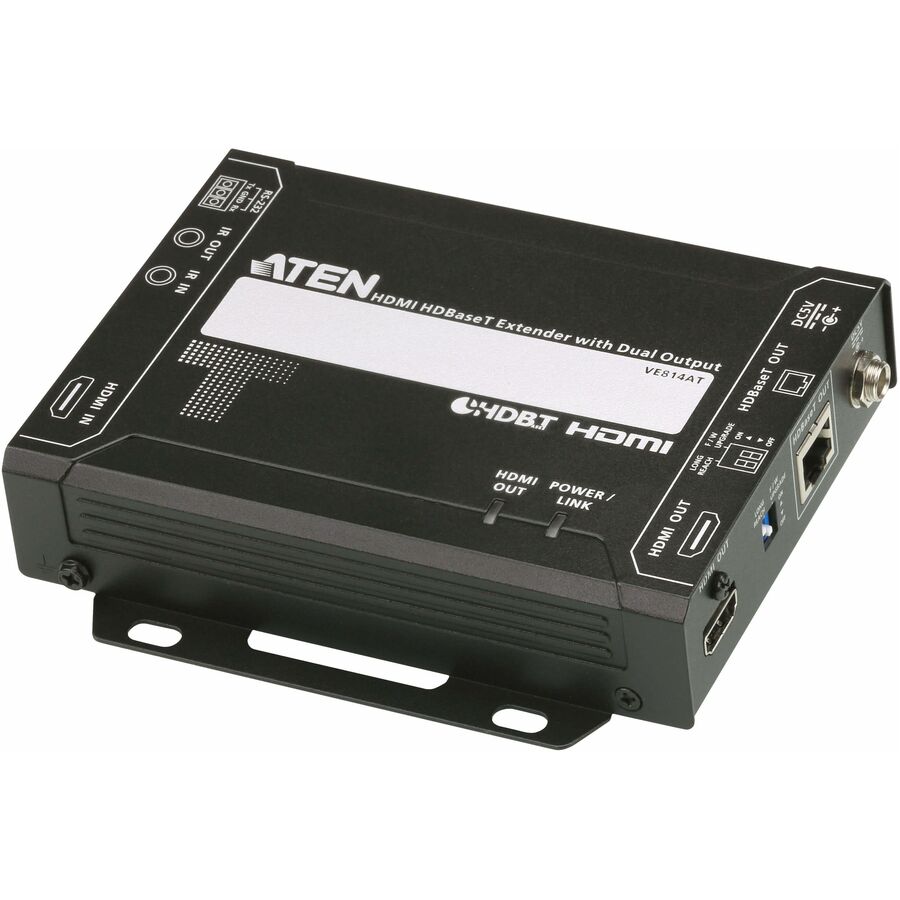

ATEN VE814AT is an HDBaseT Video Transmitter that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN2L-2910Cat 6 cable. Featuring dual synchronous outputs, the VE814AT can transmit video signal to two remote displays and one at the local side. ThisHDCP2.2-compliant transmitter meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.
The VE814AT supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814AT is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
- Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN2L-2910Cat 6 cable
- HDMI (3D, Deep Color, 4K);HDCP2.2 compatible
- Superior video quality:
- 4K up to 100 m
- 1080p up to 150 m when in HDBaseT Long Reach Mode
- Extends Ethernet communication using the Ethernet pass-through port
- Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
- ATENEDIDTechnology -- when both transmitter and receiver sides are connected,VE814Aadopts the
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 15.87 oz |
| Form Factor | Rack-mountable |
| Transmitter Depth | 5.35" |
| Transmitter Height | 1.14" |
| Transmitter Width | 3.98" |
| General Features | |
|---|---|
| Maximum Operating Distance | 492.13 ft |
| Supported Video Modes | 1080p |
| Manufacturer | ATEN Technology, Inc |
| Video Ports | |
|---|---|
| HDBase-T | Yes |
| Misc Ports | |
|---|---|
| Remote (IR) Input | 1 |
| Remote (IR) Output | 1 |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
