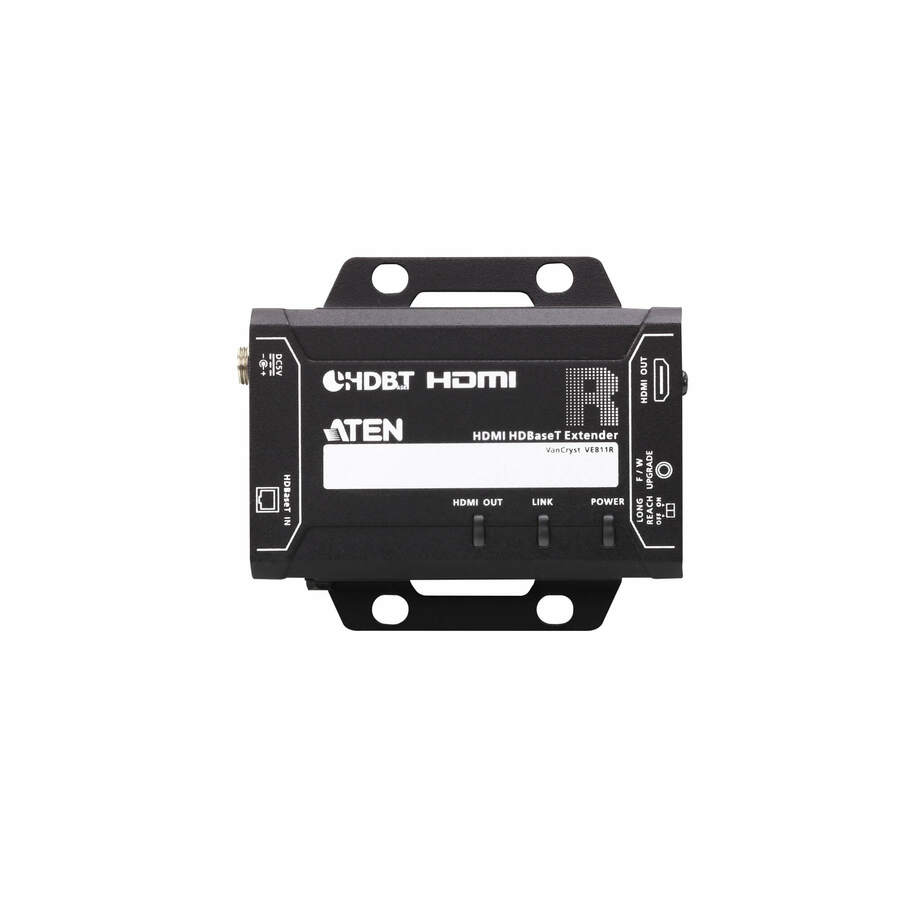

The ATEN VE811R HDMI HDBaseT Receiver guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811R meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K.
Pushing the technology and design to the limit, the compact design makes the VE811R easy to mount in any location. Engineered for today's digital trends, the VE811R is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.
- Rack Mountable
- Plug and play - no software required
- Built- in 8KV/ 15 KV ESD protection
- Supports wide screen format
- HDCP 2.2 compatible
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- HDMI (3D, Deep Color, 4K)
- HDBaseT Connectivity - extends an HDMI connection up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| Number of HDMI Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Receiver Width | 2.87" |
| Receiver Weight (Approximate) | 6 oz |
| Receiver Height | 0.97" |
| Receiver Depth | 3.40" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 328.08 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Output Devices Supported | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN HDMI HDBaseT Receiver-TAA Compliant - 1 Output Device - 328.08 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6 - Rack-mountable
