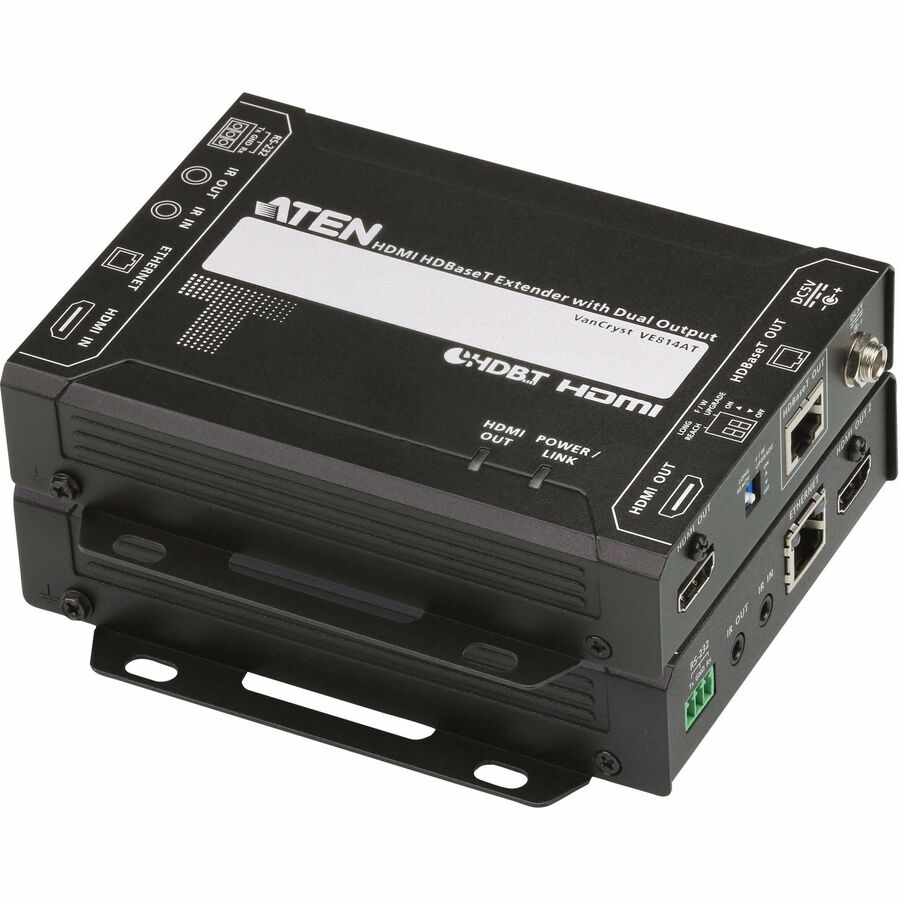

ATEN VE814A is an HDBaseT Video Extender that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814A can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant extender meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.
The VE814A supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814A is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
- Video Extender Transmitter/Receiver is all you need for dependable and productive audio/video transmission
- 4096 x 2160 maximum video resolution for a vivid, crystal clear display with added productivity
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- The VE814A video extender transmitter/receiver provides plenty of freedom with wired connectivity
- 1 input devices supported for maximum productive usability
- 1 output devices supported to better accommodate your specific requirements
- 492.13 ft maximum operating distance for reliable coverage and maximum portability
- 4K graphics mode provides optimal video output with remarkable picture clarity
- Rack-mountable video extender transmitter/receiver allows a clutter-free, convenient coding/decoding with increased efficiency
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 3 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 15.87 oz |
| Form Factor | Rack-mountable |
| Receiver Width | 3.98" |
| Receiver Weight (Approximate) | 1.04 lb |
| Receiver Height | 1.14" |
| Receiver Depth | 5.35" |
| Transmitter Depth | 5.35" |
| Transmitter Weight (Approximate) | 15.87 oz |
| Transmitter Height | 1.14" |
| Transmitter Width | 3.98" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 492.13 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6a |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | ATEN Technology, Inc |
| UPC/GTIN | 672792014147 |
| MPN | VE814A-ATA |
| Unit Count | 1 Units |
