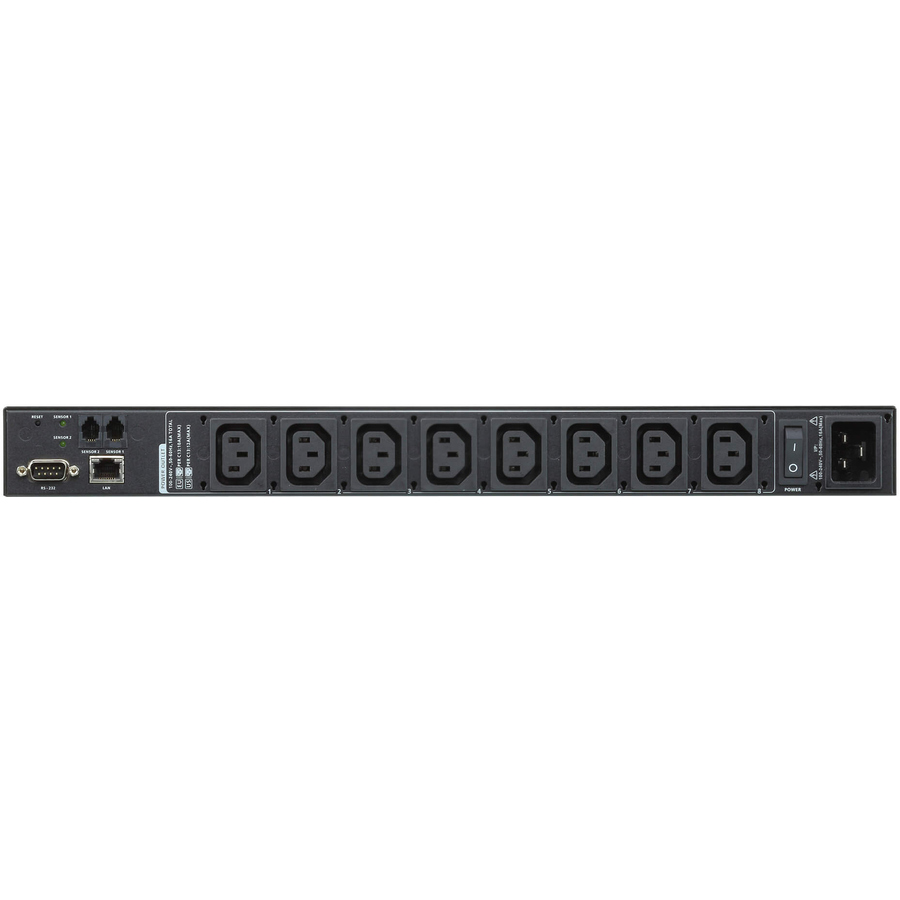

Power Distribution
- Space saving rack mount design with rear mounting
- IEC or NEMA outlet models
- 3 x 7 segment front panel LED shows Current / IP Address
- Remote users can monitor outlet status via web browser
- Safe shutdown support
- Separate power for the unit and its power outlets - the user interface is still accessible even when an overload trips the circuit breakers
- Remote power control over TCP/IP via built-in 10/100 Ethernet port (PE6 / PE8 only)
- Network Protocols: TCP/IP, PPP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, auto sense, Ping, Telnet
- PDU Power Management software - eco Sensors
- Supports SNMP Manager V1, V2 & V3
- Remote power control (On, Off, Power Cycle) by individual outlet (PE6 / PE8 only)
- Multiple power control methods - Wake on LAN, System After AC Back, Kill the Power (PE6 / PE8 only)
- Power-on sequencing - set the sequence and time delay for each outlet to power-on equipment in the correct order (PE6 / PE8 only)
- Easy setup and operation via browser-based user interface
- Multibrowser support (IE, Mozilla, Firefox, Chrome, Safari, Opera, Netscape)
- RTC support to keep the clock/timer running without power
- Supports up to 8 user and 1 administrator accounts
- Proactive Overload Protection (POP) automatically powers off outlets during current overloads to protect connected devices (PE6 / PE8 only)
- Power status measurement at the bank level (PE5 / PE6), or bank and outlet level (PE7 / PE8 only)
- LED indicators for current and IP address
- Real-time current, voltage and kWH displayed in a browsed-based UI for monitoring
- Environment monitoring via external sensors for rack temperature and humidity readings and alerts
- Current, voltage, power dissipation, energy consumption, temperature and humidity threshold settings
- Supports naming of outlets
- User outlet access rights on an outlet-by-outlet basis
- Event logging and syslog support
- Supports Management Information Base (MIB) files for SNMP
- Upgradeable firmware
- Multilingual support: English, Traditional Chinese, Simplified Chinese, Japanese, German, Italian, Spanish, French, Russian
- Two-level password security
- Security features include password protection and advanced encryption technologies - 128 bit SSL
- Remote authentication support: RADIUS
- With Switched Outlet Monitored PDU, you can remotely monitor single-or three-phase voltage easily to ensure maximum power supply efficiency
- IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
- IEC 60320 C20 plug/connector type for better, dependable connectivity and desired power output
- 120 V AC input voltage for maximum feasibility and added productivity
- 100 V AC output voltage for maximum dependability and added productivity
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Power & Battery | |
|---|---|
| PDU Type | Switched Outlet Monitored |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | IEC 60320 C20 |
| Input Voltage Range | 100 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Output Voltage Range | 100 V AC - 240 V AC |
| Input Current | 16 A |
| Power Rating (VA) | 3680 VA |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Environmental Sensors | Temperature/Humidity |
| Protection Type | Overcurrent Protection |
| Manufacturer | ATEN Technology, Inc |
