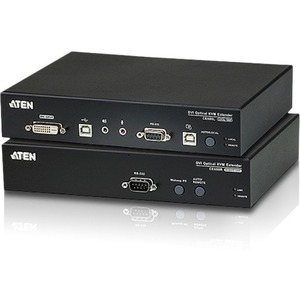

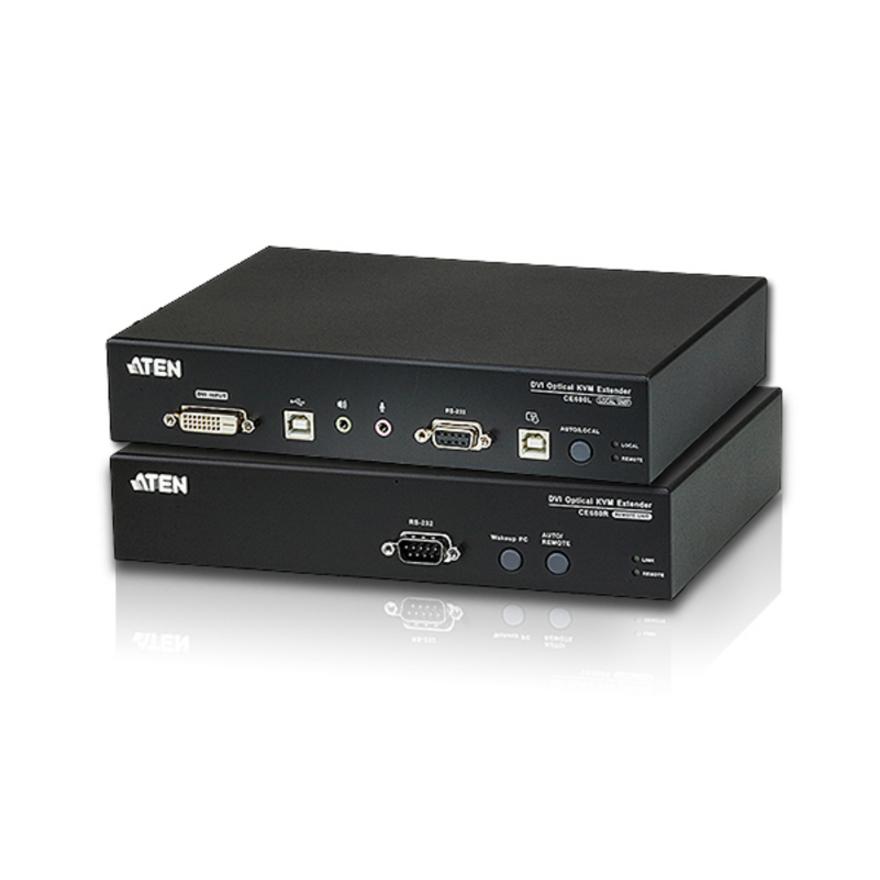

The CE680 is a DVI Optical KVM Extender that overcomes length restrictions of standard DVI cables by using fiber optics to send high definition audio, video and control signals over longer distances. The CE680 can transmit KVM DVI signals very long distances - up to 600 m away from the source. The extender takes audio/video streams from the local source and serializes the data to pass it over a single 3.125 Gbps optical link, for resolutions up to 1920 x 1200 @ 60Hz, 24-bits, with picture perfect quality.
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5.3 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 8 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Number of Remote Users Suppor | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 2.40 lb |
| Form Factor | Rack-mountable |
| Receiver Width | 6.40" |
| Receiver Weight (Approximate) | 2.40 lb |
| Receiver Height | 1.70" |
| Receiver Depth | 8.50" |
| Transmitter Depth | 8.50" |
| Transmitter Weight (Approximate) | 2.40 lb |
| Transmitter Height | 1.70" |
| Transmitter Width | 6.40" |
| General Features | |
|---|---|
| Maximum Operating Distance | 1968.50 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 1 |
| Video Ports | |
|---|---|
| DVI | Yes |
| Number of DVI Ports | 3 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN DVI Optical KVM Extender-TAA Compliant - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 1968.50 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 8 x USB - 3 x DVI - 5.3 V DC Input Voltage - Rack-mountable
