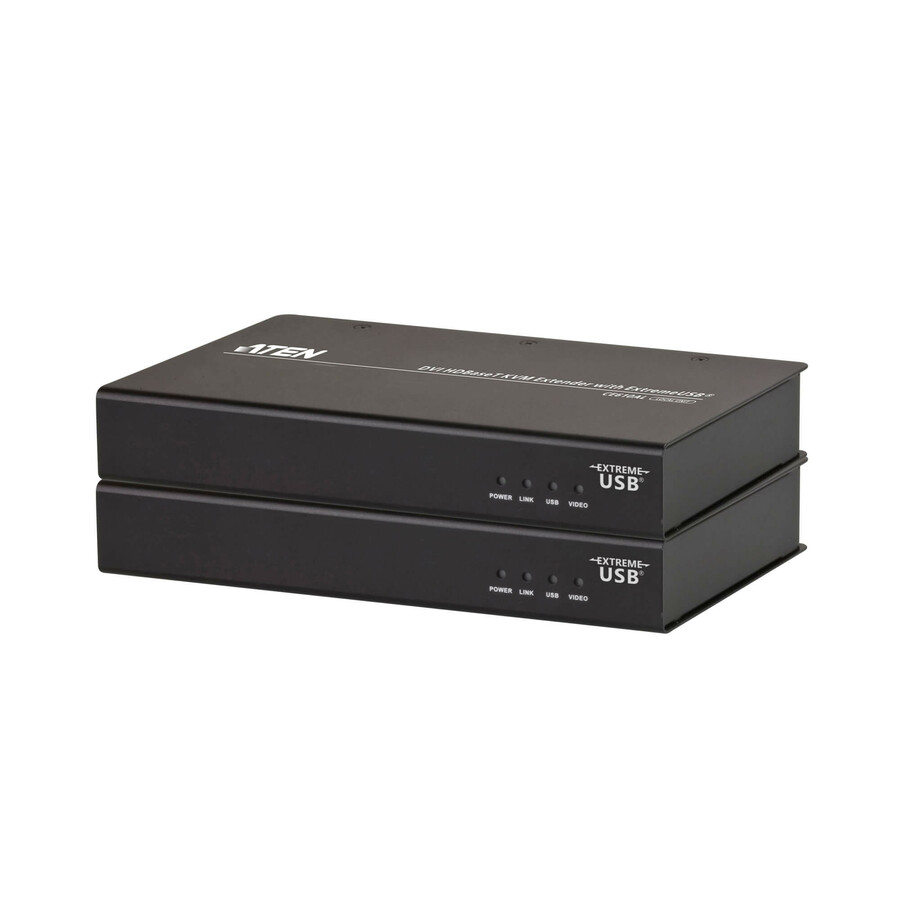

The CE610A USB DVI KVM Extender is a DVI and USB Extender that supports ExtremeUSB ® and HDBaseT technology. The CE610A can extend DVI and USB 2.0 signals up to 300 ft (100 m) from the source using a single Cat 5e/6 cable.
The CE610A is equipped with USB connectors which allow you to extend any USB device between the units. The USB functionality provides not only peripheral sharing but also the support for touch panel control and fi le transfer. The CE610A is ideal for situations where touch panel is required, such as transportation centers, medical facilities, shopping malls, industrial kiosks, and when synchronizing for files / folders between portable and desktop computers are required.
- Works with all major operating systems: Windows®, OS X®, and Linux®
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Extends local PC Video/Keyboard/Mouse to remote side
- USB 2.0 Support* - connects devices such as keyboard, mouse, audio, flash drive, printer, touch panel other USB devices which require moderate amounts of bandwidth
- Supports USB 1.1 web cameras
- ExtremeUSB ® - supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
- Anti-jamming - resists signal interference during high-quality video transmissions using HDBaseT technology
- Superior Video Quality - up to 1920 x 1200 @ 60 Hz at 100 m
- Allows access to a computer or KVM installation from a remote console
- Uses a single Cat 5e cable to connect the local and remote units
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Power Consumption | 15 W |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 6 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Software & Licensing | |
|---|---|
| Number of Remote Users Suppor | 1 |
| Number of Remote Users Supported | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1.37 lb |
| Form Factor | Rack-mountable |
| Receiver Width | 4.64" |
| Receiver Weight (Approximate) | 1.37 lb |
| Receiver Height | 1.13" |
| Receiver Depth | 7.17" |
| Transmitter Depth | 7.17" |
| Transmitter Weight (Approximate) | 1.37 lb |
| Transmitter Height | 1.13" |
| Transmitter Width | 4.64" |
| General Features | |
|---|---|
| Maximum Operating Distance | 328.08 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 1 |
| Video Ports | |
|---|---|
| DVI | Yes |
| Number of DVI Ports | 2 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN DVI HDBaseT KVM Extender with ExtremeUSB-TAA Compliant - 1 Computer(s) - 1 Remote User(s) - 328.08 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 6 x USB - 2 x DVI - 5 V DC Input Voltage - Rack-mountable - For PC, Mac, Linux
