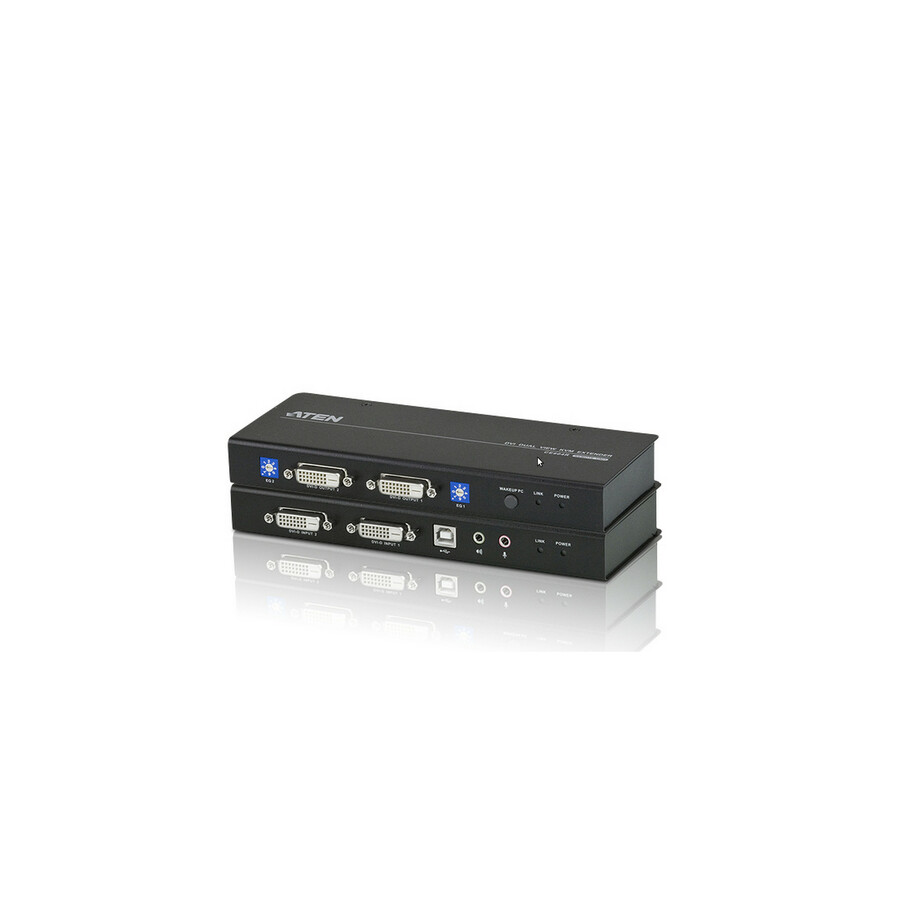

The CE604 is a DVI Dual View USB based KVM Extender that features Dual View functionality, which enables the video output to seamlessly display on two monitors. With RS-232 serial functionality, it allows access to a computer system from a remote console up to 60 m away. The CE604 is built for control and security purposes, and is targeted towards financial and industrial markets.
The CE604 is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touch screens and barcode scanners. In addition, it supports an advanced PC Wake Up feature, which allows you to simply press a pushbutton from the remote dual view console to wake a PC at the local site. The CE604 eliminates the need for traveling back and forth between the local computer and remote console, making it an effi cient and flexible solution.
- Manual compensation control to adjust video signal quality in order to compensate for distance
- Superior video quality - up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m
- Compatible with other ATEN Dual View KVM devices, such as CS1642A/ CS1644A and CS1762A/CS1764A
- Supports PC wakeup function via one pushbutton or hotkey
- RS-232 serial channel - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 9600 bps)
- Supports Real DDC bypass and ATEN default EDID technology - set up various configurations via hotkeys
- Audio Enabled - supports stereo speakers and microphone
- Supports Dual View video source transmission (one PC with two video output ports)
- Transmit speaker, keyboard, mouse, DDC and one DVI via one Cat5 cable; RS-232, microphone and another DVI by adding a second Cat 5e cable
- Local and Remote Units connect at distances up to 60 m using two Cat 5e cables
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5.3 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 3 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Headphone | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Audio | |
|---|---|
| Microphone | Yes |
| Software & Licensing | |
|---|---|
| Number of Remote Users Suppor | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1.06 lb |
| Receiver Width | 3.43" |
| Receiver Weight (Approximate) | 1.06 lb |
| Receiver Height | 0.98" |
| Receiver Depth | 7.95" |
| Transmitter Depth | 7.95" |
| Transmitter Height | 0.98" |
| Transmitter Width | 3.36" |
| General Features | |
|---|---|
| Maximum Operating Distance | 196.85 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 1 |
| Video Ports | |
|---|---|
| DVI | Yes |
| Number of DVI Ports | 4 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
