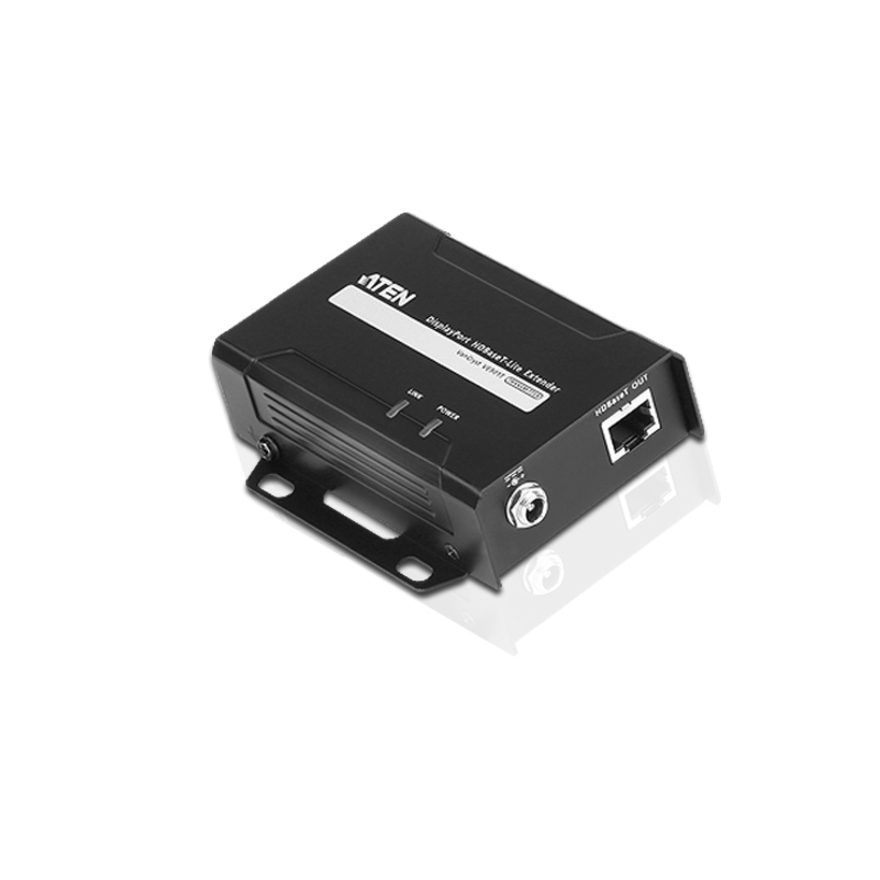

The VE901T DisplayPort HDBaseT-Lite Transmitter is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE901T DisplayPort HDBaseT-Lite Transmitter is the perfect choice for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the VE901T can be installed in a multitude of locations while ensuring peace of mind with its reliability.
- Rack-Mountable
- Featuring 3.3V / 500mA power output for powering auxiliary devices
- HDBaseT Anti-Jamming - resists signal interference during video transmission using HDBaseT technology
- HDBaseT Connectivity - extends a DisplayPort connection up to 70 meters via a single Cat 6/6a cable
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 8.47 oz |
| Form Factor | Rack-mountable |
| Transmitter Depth | 3.71" |
| Transmitter Height | 1.14" |
| Transmitter Width | 2.60" |
| General Features | |
|---|---|
| Maximum Operating Distance | 229.66 ft |
| Manufacturer | ATEN Technology, Inc |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6a |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | DisplayPort HDBaseT-Lite Transmitter (4K@40m; 1080p@70m) |
ATEN DisplayPort HDBaseT-Lite Transmitter (4K@40m; 1080p@70m)-TAA Compliant - 1 Input Device - 229.66 ft Range - 1 x Network (RJ-45) - DisplayPort - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable
