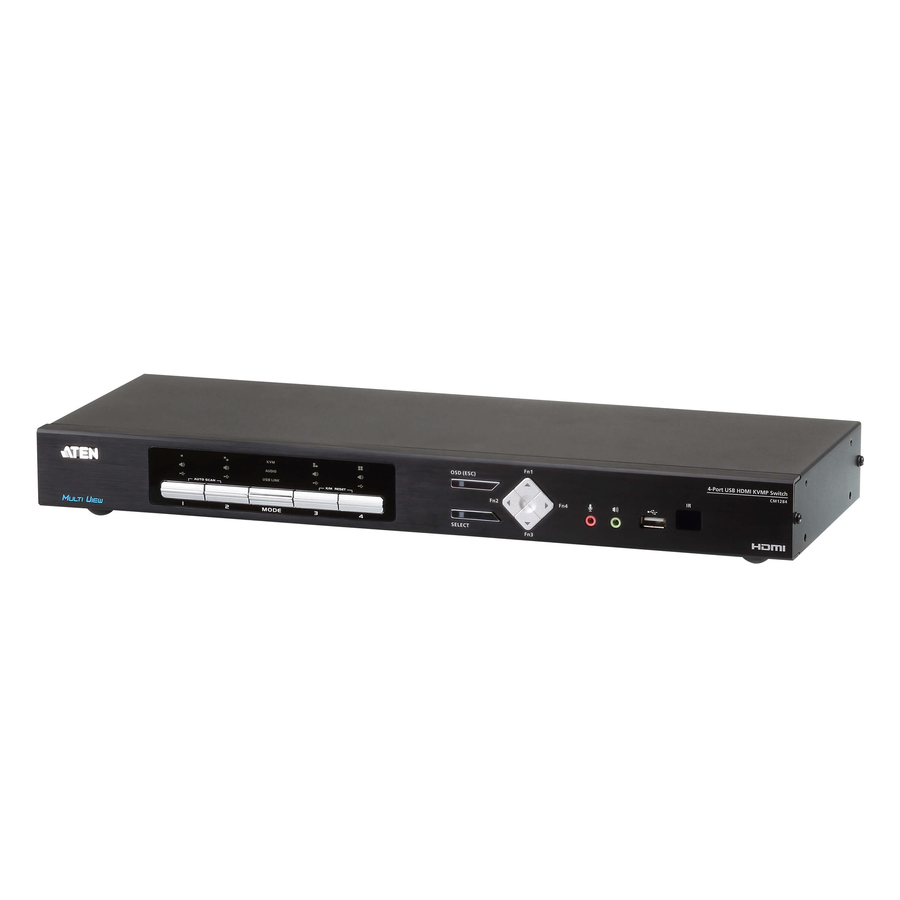

ATEN CM1284 4-Port USB HDMI Multi-View KVMP™ Switch improves the operational efficiency of real-time monitoring. The CM1284 allows users to manage the data more efficiently by allowing multiple sources to be selected, switched, and displayed at the same time with independent keyboard and mouse control.
Advanced video support provides a better-defined HDMI connection with video resolutions up to 4K (4096 x 2160 @ 30 Hz). The CM1284 guarantees users a real-time monitoring functionality by offering dual outputs on console side. One provides the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), Picture on Picture (PoP), and the other one provides Full Screen mode. Featuring Boundless Switching, the CM1284 allows users to simply move the mouse cursor across windows to switch to other video sources. This makes it easier to instantly access and control the target computer.
Incorporating Daisy Chain Control (DCC) capability, users are allowed to control up to 3 additional CM1284 units via a single console. In addition, CM1284 can be cascaded up to 2 levels to reach the maximum of 16 video sources to be simultaneously selected, switched, and displayed with independent keyboard and mouse control.
Engineered to meet the ever-increasing demand for multi-view functionality, the CM1284 is specifically designed for where real-time monitoring is needed such as aviation industry, financial trading, and medical application.
- EDID Expert™ - Selects optimum EDID settings for smooth power- up, high-quality display and use of the best video resolution across different screens
- Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Boundless Switching - Simply moves the mouse cursor across windows to switch to other video sources
- Computer selection via front panel pushbutton and hotkey, mouse, and the serial commands*
- Drop down menu - edit display windows and other functions with the mouse and on-screen control panel
- Supports superior video quality - Up to 4K (4096 x 2160 @ 30 Hz) ; YCbCr 4 :2 : 2
- Easily resizes and / or reposition any PiP or PbP to suit users' viewing needs
- System configuration via front panel, OSD, IR Remote, and RS-232 commands - display mode and port selection
- Features dual output on console side - a multi-view output and a full screen output
- Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100V AC to 240V AC |
| Input Voltage | 230 V AC |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 8 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 6 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 4 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
