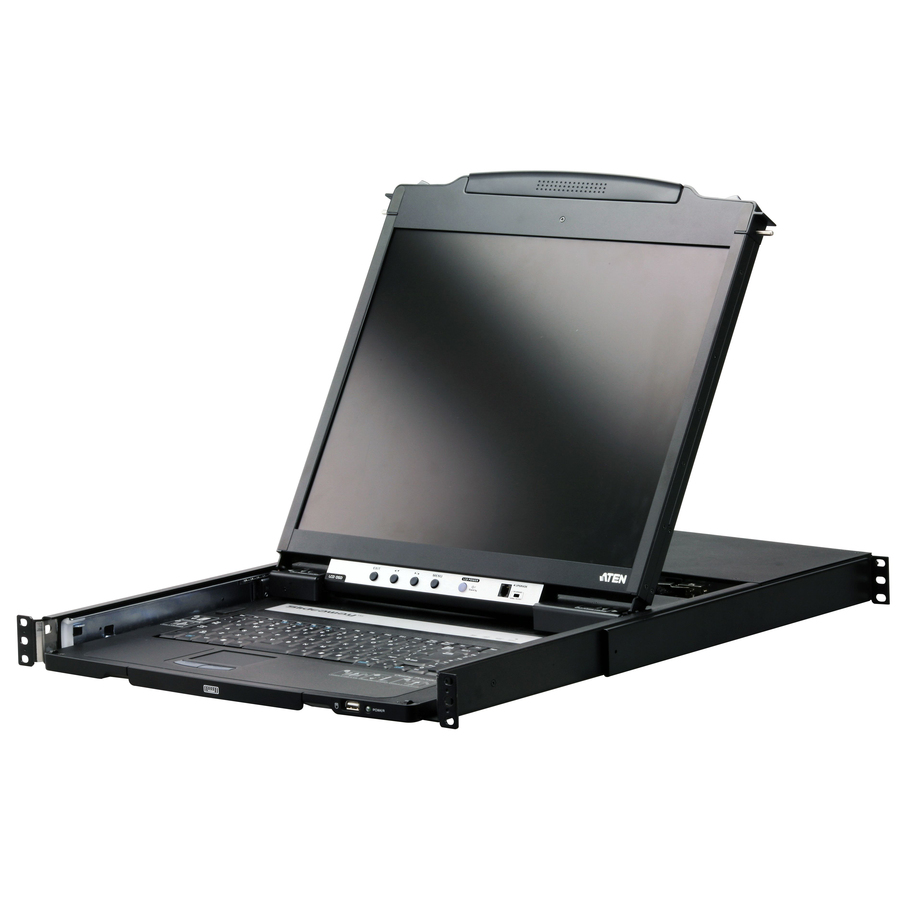

The CL5800N Rackmount LCD is a series of KVM console modules featuring an integrated 19" LCD panel, a full size 105 key keyboard, and touch pad in a 1U rack-mounted package. To maximize space in your data center the CL5800N Rackmount LCD and keyboard/touch pad modules slide independently of each other.
- Supports DDC, DDC2, DDC2B
- DDC emulation of the LCD monitor
- Internal power supply
- High video resolution: Up to 1280 x 1024 @75Hz
- Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
- Dual interface - Supports computers and KVM switches with PS/2 or USB keyboards and mice
- Supports an external console* with either PS/2 or USB connectors
- Standard rack mount kit included - optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
- Integrated KVM console with a 19" LED-backlit LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Screen / Display | |
|---|---|
| Screen Size | 19" |
| Screen Resolution | 1280 x 1024 |
| Screen Mode | SXGA |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 1 |
| Input Devices | |
|---|---|
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| General Features | |
|---|---|
| KVM Switch | No |
| Manufacturer | ATEN Technology, Inc |
| Device Type | LCD Rack Console |
| Number of Computers Supported | 1 |
| Misc Ports | |
|---|---|
| Number of PS/2 Ports | 2 |
| PS/2 Port | Yes |
ATEN CL5800N Rackmount LCD-TAA Compliant - 1 Computer(s) - 19" - SXGA - 1280 x 1024 - 2 x PS/2 Port - 1 x USB - Keyboard - TouchPad
