The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

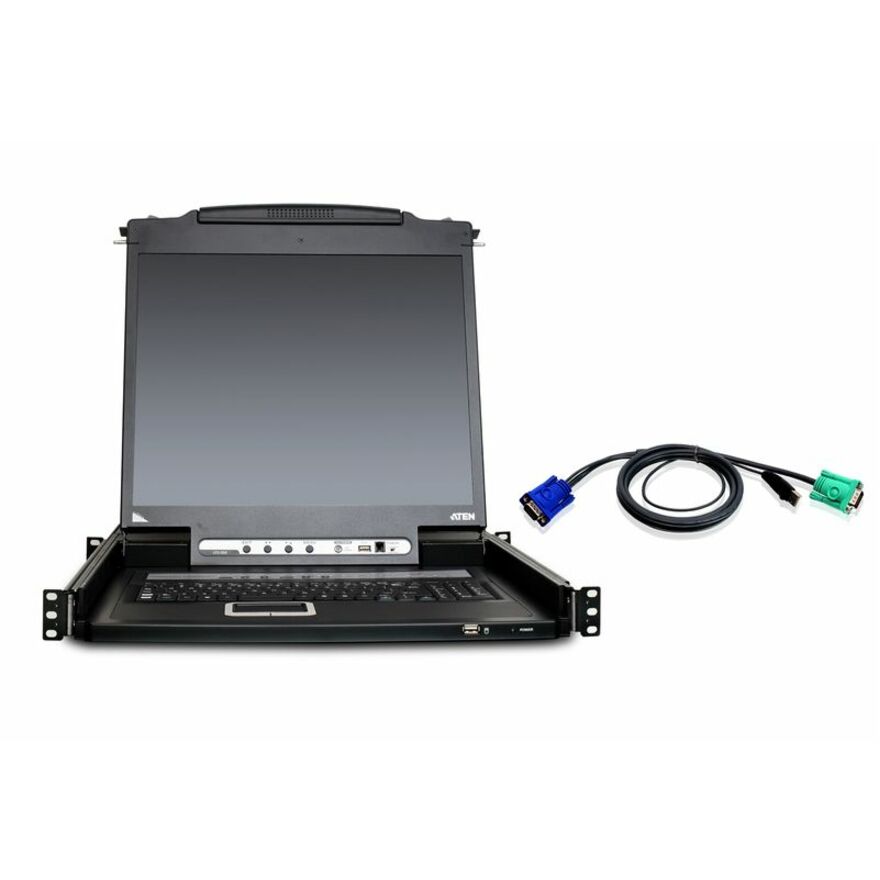

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
- Multiplatform support - Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for Windows, Mac and Sun
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- LCD module USB port allows each computer to access USB peripherals*
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
- Space saving technology - up to two consoles (one bus) control up to 8 computers
- Available with or without Fingerprint Identification Reader** - the unit is available as Fingerprint Identification Reader and NON-Fingerprint Identification Reader models
- Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Screen / Display | |
|---|---|
| Screen Size | 17" |
| Screen Resolution | 1280 x 1024 |
| Display Screen Type | LCD |
| Screen Mode | SXGA |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100-240V AC |
| Input Voltage | 230 V AC |
| Input Current | 1 A |
| Power Consumption | 25.10 W |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 2 |
| Input Devices | |
|---|---|
| Keyboard | Yes |
| General Features | |
|---|---|
| KVM Switch | No |
| Frequency | 60 Hz |
| Manufacturer | ATEN Technology, Inc |
| Device Type | LCD Rack Console |
| Number of Computers Supported | 8 |
| Misc Ports | |
|---|---|
| Daisy Chain | Yes |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
Aten CL5708MUKIT 17" Rackmount LCD with KVM Switch-TAA Compliant - 8 Computer(s) - 17"
