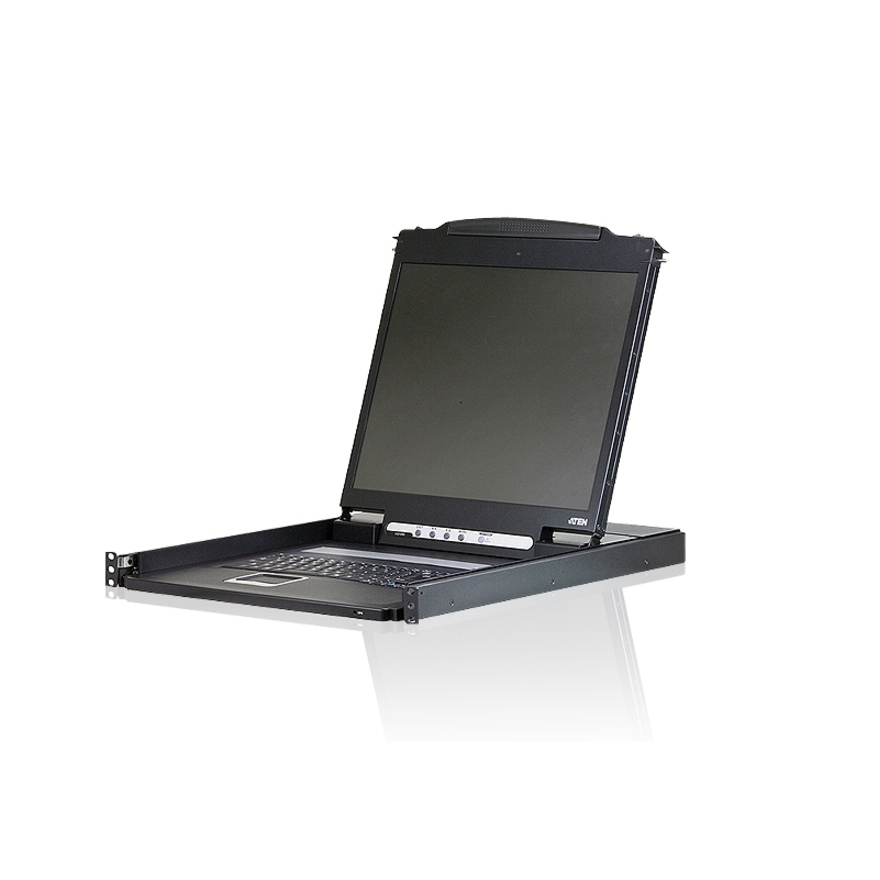

The CL1000N is a LCD KVM console that features an integrated 19" LCD panel, full keyboard, and touchpad in a 1U rackmountable housing. This model provides convenient 'at the rack' console access to KVM switches already installed at your site.
- DDC emulation of the LCD monitor-Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
- Supports DDC, DDC2, DDC2B
- Supports input video resolutions up to 1920 x 1200 @ 60 Hz; and up to 1280 x 1024 @ 75 Hz with the built-in LCD screen
- Adjustable depth to fit within a rack
- Internal power supply
- Compatible with most PS/2 KVM Switches
- Slideaway™ housing is less than 1U - with top and bottom clearance for smooth operation in a 1U high system rack
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Integrated KVM console with 17" or 19" LED-backlit LCD monitor - in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Screen / Display | |
|---|---|
| Screen Size | 19" |
| Screen Resolution | 1280 x 1024 |
| Display Screen Type | LCD |
| Screen Mode | SXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Power Consumption | 24 W |
| Input Devices | |
|---|---|
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| Size / Dimensions | |
|---|---|
| Rack Height | 1U |
| General Features | |
|---|---|
| KVM Switch | No |
| Manufacturer | ATEN Technology, Inc |
| Device Type | LCD Rack Console |
| Number of Computers Supported | 1 |
| Misc Ports | |
|---|---|
| Proprietary Interface | Yes |
| Number of Proprietary Ports | 1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN CL1000N LCD Console-TAA Compliant - 1 Computer(s) - 19" LCD - SXGA - 1280 x 1024 - 1 - Keyboard120 V AC, 230 V AC Input Voltage - 1U High
