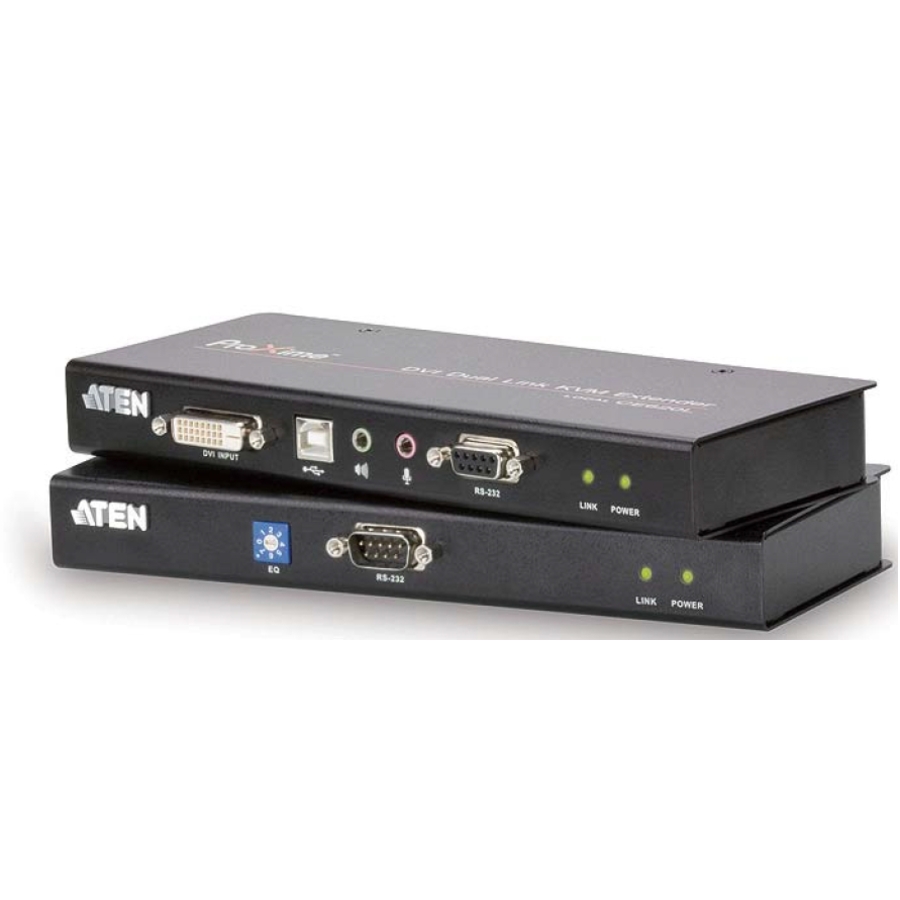

The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.
- Superior video quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m - get an excellent, crisp image on your screen over long distance transmissions
- Supports Wide Screen formats
- Audio Enabled - supports stereo speakers and microphone
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps)
- The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals
- Manual compensation control to adjust signal strength in order to compensate for distance
- Features ATEN technology that allows A/V transmission over one cat 5e cable
- Allows access to a computer or KVM installation from a remote console (up to 60 m)
- Local and Remote Units connect at distances up to 60 m using Cat 5e cable
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5.3 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 3 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Headphone | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Audio | |
|---|---|
| Microphone | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Receiver Width | 2.18" |
| Receiver Height | 0.98" |
| Receiver Depth | 7.95" |
| Transmitter Depth | 7.95" |
| Transmitter Height | 0.98" |
| Transmitter Width | 3.43" |
| General Features | |
|---|---|
| KVM Technology | Analog |
| Maximum Operating Distance | 196.85 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 1 |
| Video Ports | |
|---|---|
| DVI | Yes |
| Number of DVI Ports | 2 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | ATEN Technology, Inc |
| UPC/GTIN | 672792002991 |
| MPN | CE600 |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
ATEN CE600 KVM Console/Extender-TAA Compliant - 1 Computer(s) - 196.85 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 3 x USB - 2 x DVI - 5.3 V DC Input Voltage - Rack-mountable
