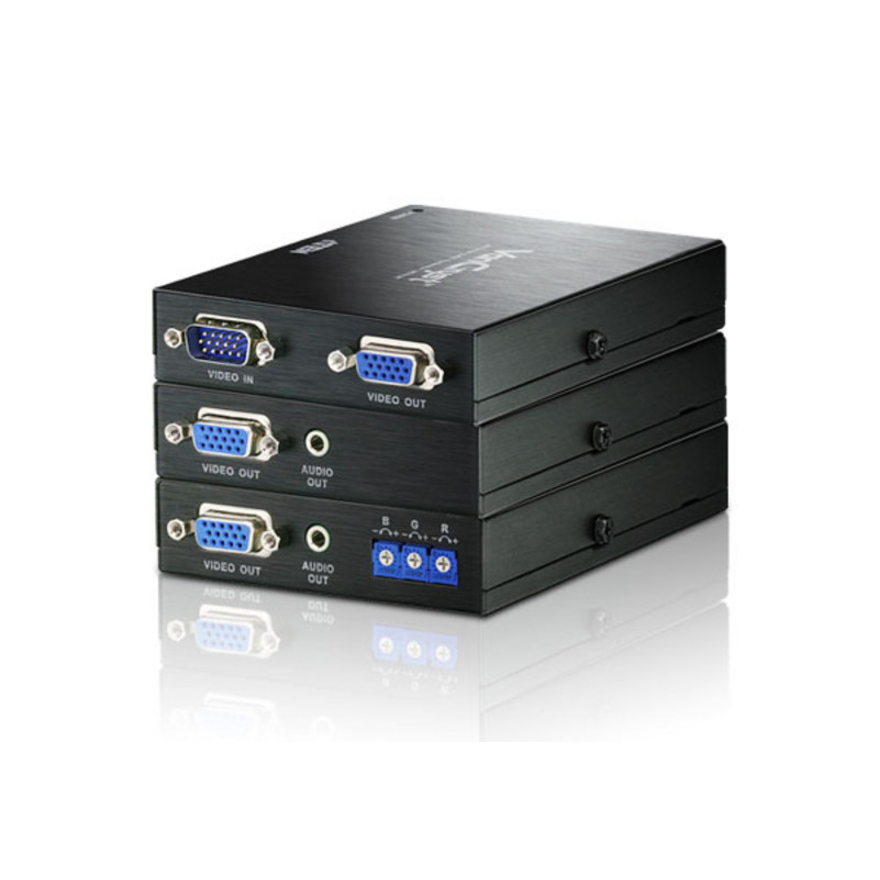

The VE170 A/V Over Cat 5 Extender, comprising of a VE170T Transmitter unit and a VE170R or VE170RQ Receiver unit, is a cost-effective and effi cient solution for sending and receiving high quality audio and video content. Connect the two units using Cat 5e cable and the displays can be located up to 300 m (1000 ft) away from the Transmitter's input source. The VE170R and VE170RQ Receiver units can also be used with the ATEN VS1204T/VS1208T A/V Over Cat 5 Splitter as a transmitter.
The VE170RQ features ATEN patented Deskew technology, which supports the manual synchronization of RGB signals and corrects color phase and timing errors that occur over large distances.
- Video Extender Transmitter/Receiver is a reliable audio/video transmission extending solution
- 1920 x 1200 maximum video resolution for a vivid, crystal clear display with added productivity
- VGA in for your convenience and optimal audio/video output with maximum usage feasibility
- VGA out for your convenience and optimal audio/video output with maximum usage feasibility
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- 1 input devices supported to better accommodate your specific requirements
- 2 output devices supported to better accommodate your specific requirements
- 984.25 ft maximum operating distance for reliable coverage and maximum portability
- WUXGA graphics mode provides optimal video output with remarkable picture clarity
- Rack-mountable form factor for your convenience and simplicity of usage
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphics Modes | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5.3 V DC |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 8.82 oz |
| Form Factor | Rack-mountable |
| Transmitter Weight (Approximate) | 8.82 oz |
| Transmitter Height | 0.89" |
| Transmitter Width | 3.37" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 2 |
| Maximum Operating Distance | 984.25 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 2 |
| Video Ports | |
|---|---|
| Number of VGA Inputs | 1 |
| VGA In | Yes |
| VGA Out | Yes |
| Number of VGA Outputs | 2 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 5e |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | ATEN Technology, Inc |
| UPC/GTIN | 672792002632 |
| MPN | VE170Q |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
ATEN A/V Over Cat 5 Extender-TAA Compliant - 1 Input Device - 2 Output Device - 984.25 ft Range - 2 x Network (RJ-45) - 1 x VGA In - 2 x VGA Out - WUXGA - 1920 x 1200 - Twisted Pair - Category 5e - Rack-mountable
