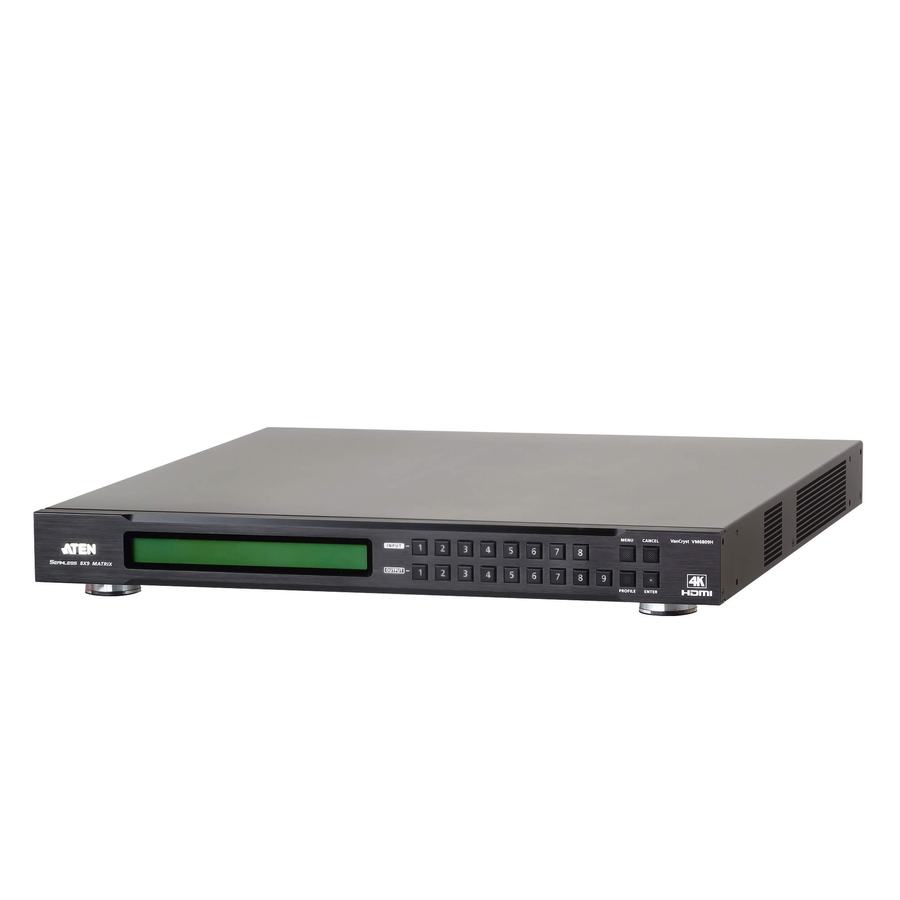

4K is the next generation of image quality for high definition video, which delivers eight million pixels that is four times as much detail as 1080p Full HD resolutions. ATEN's VM6809H 4K HDMI Matrix Switch with Scaler is compatible with the two latest 4K video resolution standards: 3840 x 2160 and 4096 x 2160. The VM6809H offers powerful HD processing to produce 4K resolutions across nine displays with crystal-clear images.
The VM6809H supports 4K @ 60 Hz, HDMI 2.0 and HDCP 2.2 and features seamless switching that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6809H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 17 connection profiles that can be customized into different video wall layouts.
The VM6809H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup - such as for stage presentations, digital classroom, video conference rooms and any installation that requires real-time synchronization.
- ESD protection for HDMI
- Audio-enabled, HDMI audio can be extracted to stereo audio
- HDMI (3D, Deep color, 4K); HDCP 2.2 compatible
- FrameSync - prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
- EDID Expert -selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
- Video Wall -allows you to create custom video wall layouts via intuitive web GUI
- Seamless Switch™ -features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions
- 4K Scaler - features a 4K video scaling function to convert input resolutions to the display's native resolutions
- Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web GUI or Telnet
- 8 x 9 HDMI input/output connections
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 8 |
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Cable |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 9 |
| Number of HDMI Inputs | 8 |
| Ethernet Port | |
|---|---|
| Number of Connectivity (RJ-45 | 1 |
| Connectivity (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 8 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Maximum Operating Distance | 49.21 ft |
| Manufacturer | ATEN Technology, Inc |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
