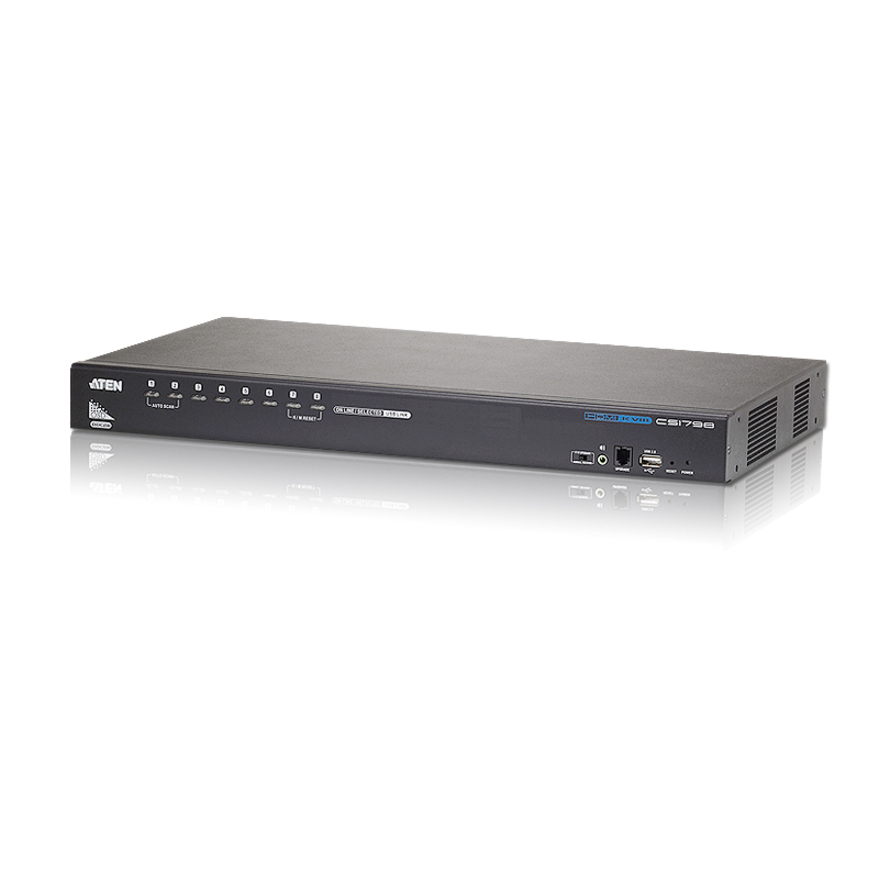

The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard, USB mouse, and monitor console.
The CS1798 can be cascaded up to three levels - to control up to 512 computers - all from a single console. In addition the CS1798 features multi-display functionality, which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment. Furthermore, the CS1798 comes with ATEN's on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD confi guration backup/restore to save/back up the OSD settings and restore them as needed. The CS1798 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).- Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Firmware upgradable
- Independent switching of KVM and USB focus
- OSD Backup/Restore feature-enables the administrator to back up the switch's configuration and user profile information
- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- 2-port USB 2.0 hub built in
- Multi-Display feature - stack up to eight CS1798 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
- HDMI compatible
- Cascadable to three levels-control up to 512 computers*1
- One USB console controls up to eight HDMI interface computers and two additional USB 2.0 devices
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 12 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 9 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Audio Ports | |
|---|---|
| Headphone | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Audio | |
|---|---|
| Microphone | Yes |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Number of Local Users Supported | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 8 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Minimum Scan Interval | 1 Second |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN 8-Port USB HDMI KVM Switch-TAA Compliant - 8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 1 x Network (RJ-45) - 12 x USB - 9 x HDMI - Rack-mountable
